R20507RR02Q

C&K

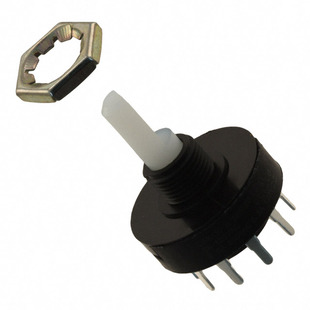

Image may be representation. See specifications for product details.

Product Overview

Part Number:	R20507RR02Q
Manufacturer/Brand:	C&K
Product description	SWITCH ROTARY 5POS 5A 125V
Datasheets:	R20507RR02Q.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31054 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31054 pcs

Reference Price (In US Dollars)

1 pcs: $1.936

10 pcs: $1.856

25 pcs: $1.695

50 pcs: $1.614

100 pcs: $1.453

250 pcs: $1.331

500 pcs: $1.291

1000 pcs: $1.251

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.936

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of R20507RR02Q

Part Number	R20507RR02Q	Manufacturer	C&K
Description	SWITCH ROTARY 5POS 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31054 pcs	Data sheet	R20507RR02Q.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	125V
Termination Style	PC Pin	Series	R
Panel Cutout Dimensions	Circular - 9.78mm Dia	Other Names	*R20507RR02Q CKN9483
Operating Force	-	Number of Positions	5
Number of Poles per Deck	2	Number of Decks	1
Mounting Type	Panel Mount, Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Index Stops	Fixed	Features	-
Detailed Description	Rotary Switch 5 Position DP5T 5A (AC), 500mA (DC) 125VAC Panel Mount, Through Hole	Depth Behind Panel	10.29mm
Current Rating	5A (AC), 500mA (DC)	Contact Timing	Non-Shorting (BBM)
Contact Material	Copper	Contact Finish	Silver
Circuit per Deck	DP5T	Angle of Throw	36°
Actuator Type	Flatted (6.35mm Dia)	Actuator Length	12.70mm
