PN12SHNA03QE

C&K

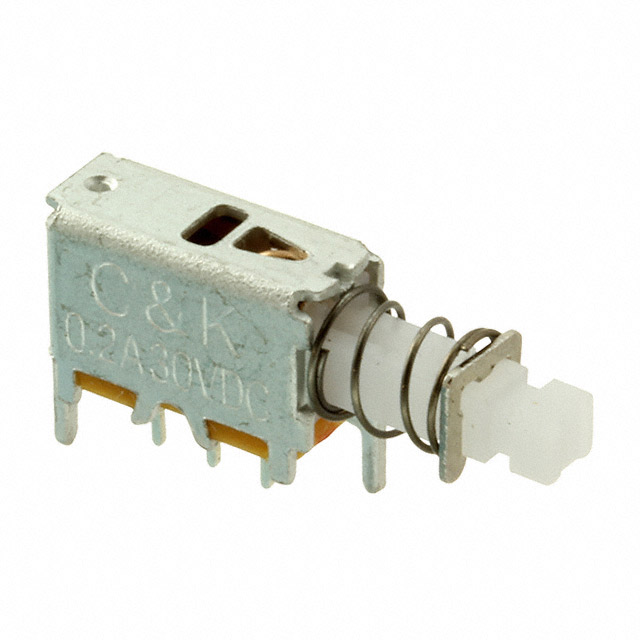

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PN12SHNA03QE
Manufacturer/Brand:	C&K
Product description	SWITCH PUSH SPDT 0.2A 30V
Datasheets:	PN12SHNA03QE.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	66857 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 66857 pcs

Reference Price (In US Dollars)

1 pcs: $0.483

10 pcs: $0.45

25 pcs: $0.428

50 pcs: $0.407

100 pcs: $0.396

250 pcs: $0.385

500 pcs: $0.364

1000 pcs: $0.343

5000 pcs: $0.289

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.483

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PN12SHNA03QE

Part Number	PN12SHNA03QE	Manufacturer	C&K
Description	SWITCH PUSH SPDT 0.2A 30V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	66857 pcs	Data sheet	PN12SHNA03QE.pdf
Voltage Rating - DC	30V	Type	Standard
Termination Style	PC Pin	Switch Function	On-On
Series	PN	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	*PN12SHNA03QE CKN1189
Operating Temperature	-10°C ~ 60°C	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Features	Epoxy Sealed Terminals
Electrical Life	10,000 Cycles	Detailed Description	Pushbutton Switch SPDT Standard Through Hole, Right Angle
Current Rating	200mA (DC)	Color - Actuator/Cap	White
Circuit	SPDT	Actuator Type	Plunger for Cap
