HomeProductsSwitchesKeylock SwitchesBY01AFJC03LQ22

BY01AFJC03LQ22

C&KC&K

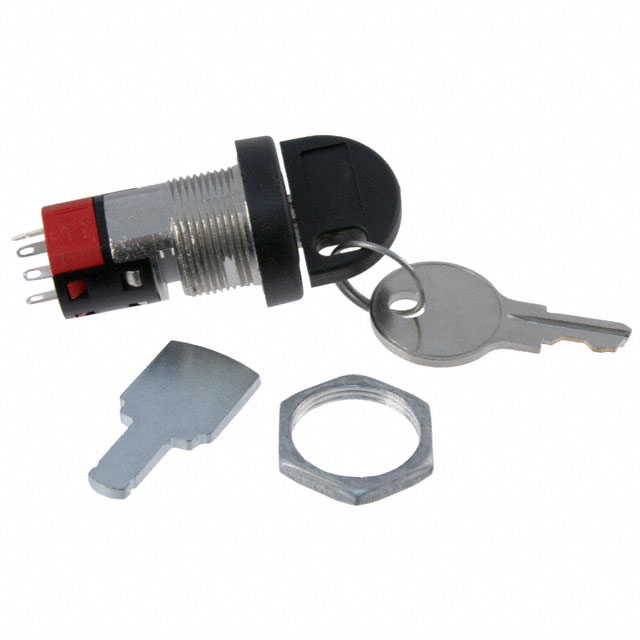

BY01AFJC03LQ22 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: BY01AFJC03LQ22
Manufacturer/Brand: C&K
Product description SWITCH KEYLOCK 3POS SP3T 4A 125V
Datasheets: BY01AFJC03LQ22.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5091 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 5091 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of BY01AFJC03LQ22

Part Number BY01AFJC03LQ22 Manufacturer C&K
Description SWITCH KEYLOCK 3POS SP3T 4A 125V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5091 pcs Data sheet BY01AFJC03LQ22.pdf
Voltage Rating - DC 28V Voltage Rating - AC 125V
Termination Style Solder Lug Switch Function On-On-On
Series BY Panel Cutout Dimensions Circular - 19.30mm Dia
Other Names *BY01AFJC03LQ22
CKC8025		 Operating Temperature -
Number of Positions 3 Mounting Type Panel Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life -
Lead Free Status / RoHS Status Lead free / RoHS Compliant Key Removable Positions All
Features Epoxy Sealed Terminals, Latch Pawl Electrical Life 10,000 Cycles
Detailed Description Keylock Switch 3 Position SP3T 4A (AC/DC) 125VAC 28VDC Panel Mount Depth Behind Flange 35.88mm
Current Rating 4A (AC/DC) Contact Timing Not Specified
Contact Material Copper Contact Finish Silver
Circuit SP3T Angle of Throw 45°
Actuator Type Flat Key
