C&K

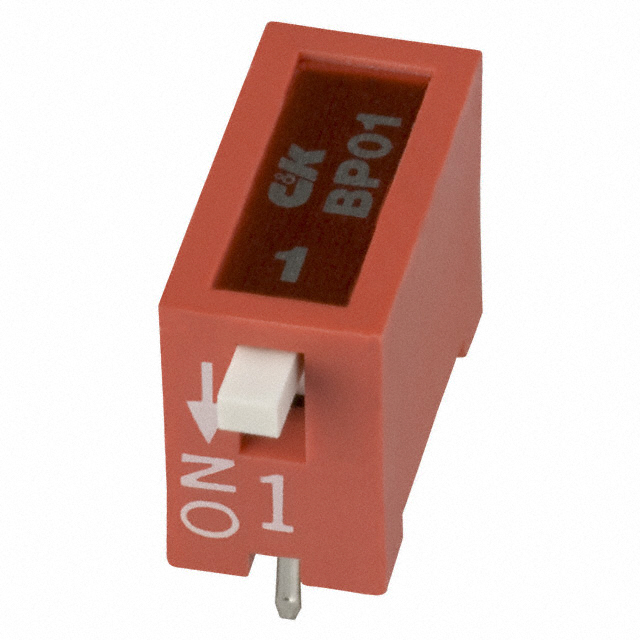

| Part Number | BP01KT | Manufacturer | C&K |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5442 pcs | Data sheet | BP01KT.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | PC Pin | Series | BP |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | *BP01KT BP01KT-ND CKN6019 |
Operating Temperature | -20°C ~ 60°C |
| Number of Positions | 1 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 2,000 Cycles |
| Length | 0.206" (5.23mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.315" (8.00mm) | Features | Epoxy Sealed Terminals, Tape Seal |
| Electrical Life | 2,000 Cycles | Detailed Description | Dip Switch SPST 1 Position Through Hole, Right Angle Slide (Standard) Actuator 100mA 5VDC |
| Current Rating | 100mA | Contact Material | Phosphor Bronze |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyester (PET), Glass Filled | Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
