SDQ25-102-R

Bussmann (Eaton)

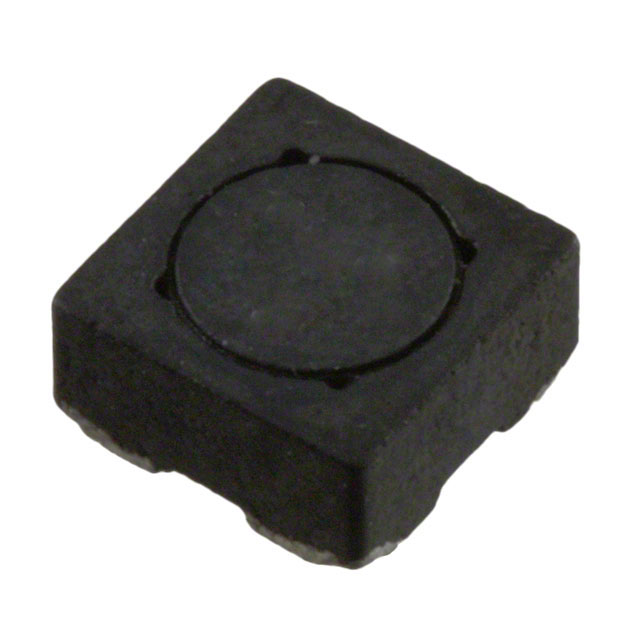

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDQ25-102-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 1MH SMD
Datasheets:	SDQ25-102-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	58230 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 58230 pcs

Reference Price (In US Dollars)

2900 pcs: $0.55

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.55

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDQ25-102-R

Part Number	SDQ25-102-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 1MH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	58230 pcs	Data sheet	SDQ25-102-R.pdf
Tolerance	±20%	Size / Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Shielding	Shielded	Series	SDQ
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Operating Temperature	-40°C ~ 125°C
Number of Coils	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	14 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance - Connected In Series	4mH
Inductance - Connected In Parallel	1mH	Height	0.098" (2.50mm)
Detailed Description	Shielded 2 Coil Inductor Array 4mH Inductance - Connected in Series 1mH Inductance - Connected in Parallel 9.82 Ohm DC Resistance (DCR) - Parallel 160mA Nonstandard	DC Resistance (DCR) - Series	39.26 Ohm
DC Resistance (DCR) - Parallel	9.82 Ohm	Current Saturation - Series	63mA
Current Saturation - Parallel	127mA	Current Rating - Series	80mA
Current Rating - Parallel	160mA
