SDQ12-6R2-R

Bussmann (Eaton)

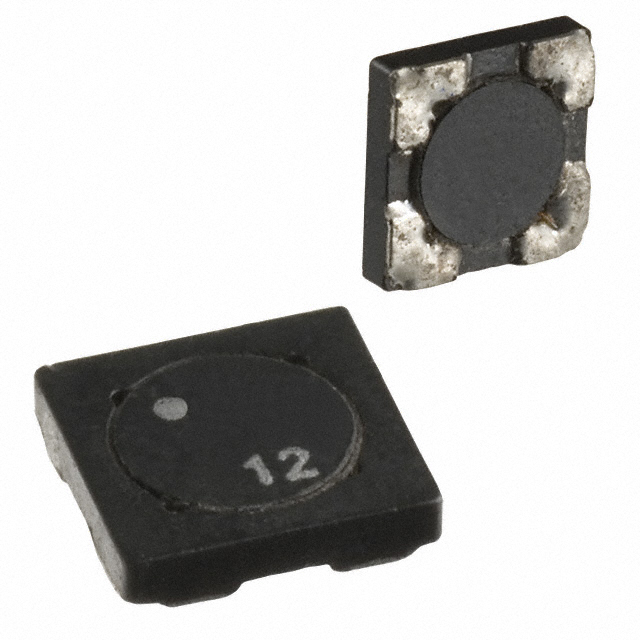

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SDQ12-6R2-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 6.25UH SMD
Datasheets:	SDQ12-6R2-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59044 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59044 pcs

Reference Price (In US Dollars)

1 pcs: $1.274

10 pcs: $1.169

100 pcs: $0.765

500 pcs: $0.68

1000 pcs: $0.638

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.274

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SDQ12-6R2-R

Part Number	SDQ12-6R2-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 6.25UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59044 pcs	Data sheet	SDQ12-6R2-R.pdf
Tolerance	±20%	Size / Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Shielding	Shielded	Series	SDQ
Ratings	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	513-1111-6
Operating Temperature	-40°C ~ 125°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	25µH	Inductance - Connected In Parallel	6.25µH
Height	0.047" (1.19mm)	Detailed Description	Shielded 2 Coil Inductor Array 25µH Inductance - Connected in Series 6.25µH Inductance - Connected in Parallel 238.7 mOhm DC Resistance (DCR) - Parallel 1.02A Nonstandard
DC Resistance (DCR) - Series	954.8 mOhm	DC Resistance (DCR) - Parallel	238.7 mOhm
Current Saturation - Series	608mA	Current Saturation - Parallel	1.22A
Current Rating - Series	512mA	Current Rating - Parallel	1.02A
