HCP1305-2R2-R

Bussmann (Eaton)

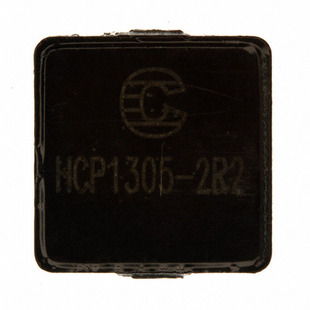

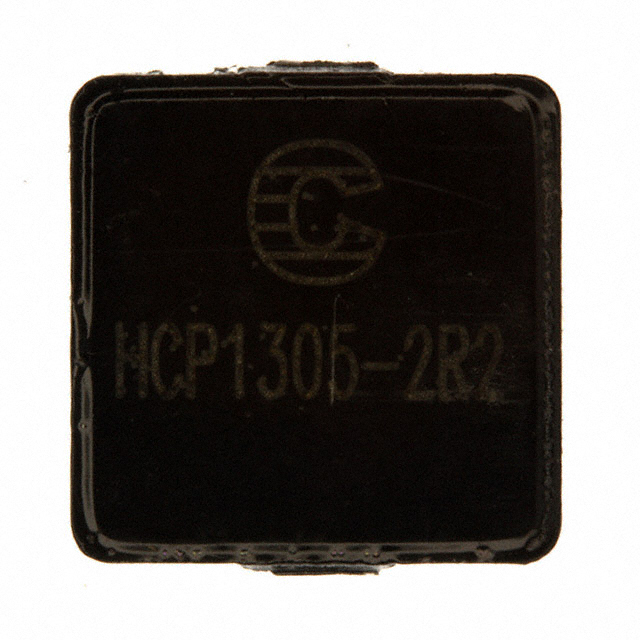

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCP1305-2R2-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	FIXED IND 2.2UH 20A 5.5 MOHM SMD
Datasheets:	HCP1305-2R2-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5058 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5058 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCP1305-2R2-R

Part Number	HCP1305-2R2-R	Manufacturer	Bussmann (Eaton)
Description	FIXED IND 2.2UH 20A 5.5 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5058 pcs	Data sheet	HCP1305-2R2-R.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.543" L x 0.508" W (13.80mm x 12.90mm)
Shielding	Unshielded	Series	HCP1305
Ratings	-	Q @ Freq	-
Packaging	Cut Tape (CT)	Package / Case	Nonstandard
Other Names	513-1378-1 HCP13052R2R	Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	2.2µH
Height - Seated (Max)	0.197" (5.00mm)	Frequency - Self Resonant	-
Detailed Description	2.2µH Unshielded Wirewound Inductor 20A 5.5 mOhm Max Nonstandard	DC Resistance (DCR)	5.5 mOhm Max
Current Rating	20A	Current - Saturation	32A
