HCM0503-2R2-R

Bussmann (Eaton)

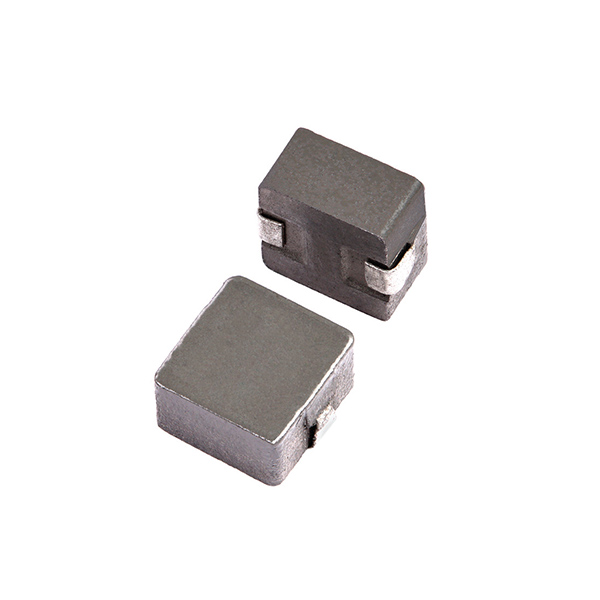

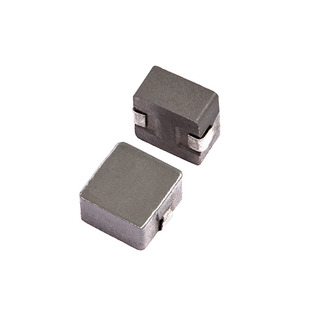

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCM0503-2R2-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	FIXED IND 2.2UH 6.8A 25 MOHM SMD
Datasheets:	HCM0503-2R2-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	135115 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 135115 pcs

Reference Price (In US Dollars)

2000 pcs: $0.159

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.159

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCM0503-2R2-R

Part Number	HCM0503-2R2-R	Manufacturer	Bussmann (Eaton)
Description	FIXED IND 2.2UH 6.8A 25 MOHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	135115 pcs	Data sheet	HCM0503-2R2-R.pdf
Type	Wirewound	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.203" L x 0.201" W (5.15mm x 5.10mm)
Shielding	Shielded	Series	HCM0503
Ratings	-	Q @ Freq	-
Packaging	Tape & Reel (TR)	Package / Case	Nonstandard
Operating Temperature	-55°C ~ 125°C	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Core	Iron Powder
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance Frequency - Test	100kHz	Inductance	2.2µH
Height - Seated (Max)	0.118" (3.00mm)	Frequency - Self Resonant	-
Detailed Description	2.2µH Shielded Wirewound Inductor 6.8A 25 mOhm Max Nonstandard	DC Resistance (DCR)	25 mOhm Max
Current Rating	6.8A	Current - Saturation	6.5A
