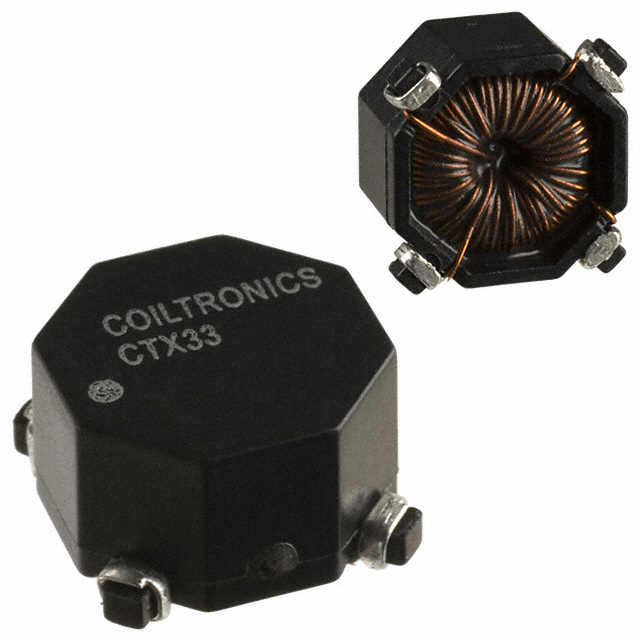

Part Number | CTX33-3A-R | Manufacturer | Bussmann (Eaton) |
---|---|---|---|
Description | INDUCT ARRAY 2 COIL 33.71UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 5596 pcs | Data sheet | CTX33-3A-R.pdf |
Tolerance | ±25% | Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
Shielding | Unshielded | Series | OCTA-PAC® PLUS |
Ratings | - | Packaging | Tape & Reel (TR) |
Package / Case | Nonstandard | Other Names | CTX33-3A CTX33-3A-ND |
Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inductance - Connected In Series | 134.8µH |
Inductance - Connected In Parallel | 33.71µH | Height | 0.190" (4.83mm) |
Detailed Description | Unshielded 2 Coil Inductor Array 134.8µH Inductance - Connected in Series 33.71µH Inductance - Connected in Parallel 112 mOhm Max DC Resistance (DCR) - Parallel 1.93A Nonstandard | DC Resistance (DCR) - Series | 449 mOhm Max |
DC Resistance (DCR) - Parallel | 112 mOhm Max | Current Saturation - Series | 800mA |
Current Saturation - Parallel | 1.61A | Current Rating - Series | 960mA |
Current Rating - Parallel | 1.93A |
