CTX300-2P-R

Bussmann (Eaton)

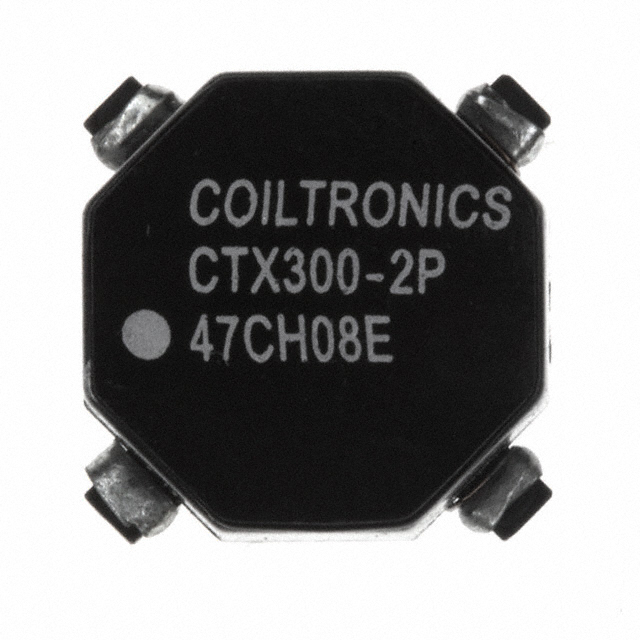

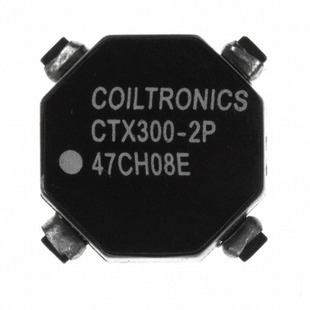

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX300-2P-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 300.42UH SMD
Datasheets:	CTX300-2P-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34853 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34853 pcs

Reference Price (In US Dollars)

800 pcs: $0.956

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.956

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX300-2P-R

Part Number	CTX300-2P-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 300.42UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34853 pcs	Data sheet	CTX300-2P-R.pdf
Tolerance	±20%	Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Shielding	Unshielded	Series	Econo-Pac™
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1546-2 CTX300-2P CTX300-2P-ND CTX300-2P-R-ND
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	1.2mH	Inductance - Connected In Parallel	300.42µH
Height	0.235" (5.97mm)	Detailed Description	Unshielded 2 Coil Inductor Array 1.2mH Inductance - Connected in Series 300.42µH Inductance - Connected in Parallel 1.176 Ohm Max DC Resistance (DCR) - Parallel 420mA Nonstandard
DC Resistance (DCR) - Series	4.703 Ohm Max	DC Resistance (DCR) - Parallel	1.176 Ohm Max
Current Rating - Series	210mA	Current Rating - Parallel	420mA
