Bussmann (Eaton)

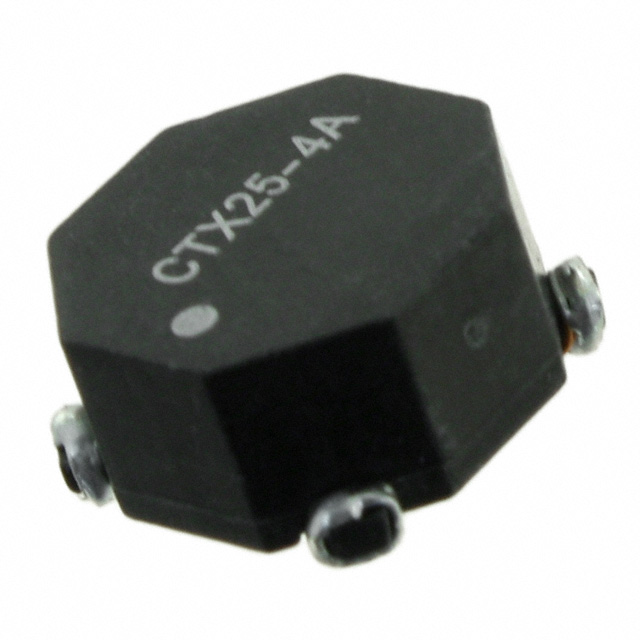

| Part Number | CTX25-4A-R | Manufacturer | Bussmann (Eaton) |
|---|---|---|---|
| Description | INDUCT ARRAY 2 COIL 25.14UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32676 pcs | Data sheet | CTX25-4A-R.pdf |
| Tolerance | ±25% | Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
| Shielding | Unshielded | Series | OCTA-PAC® PLUS |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Nonstandard | Other Names | 513-1810-2 CTX25-4A CTX25-4A-ND CTX25-4A-R-ND CTX254AR |
| Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Inductance - Connected In Series | 100.51µH | Inductance - Connected In Parallel | 25.14µH |
| Height | 0.250" (6.35mm) | Detailed Description | Unshielded 2 Coil Inductor Array 100.51µH Inductance - Connected in Series 25.14µH Inductance - Connected in Parallel 48 mOhm Max DC Resistance (DCR) - Parallel 3.02A Nonstandard |
| DC Resistance (DCR) - Series | 193 mOhm Max | DC Resistance (DCR) - Parallel | 48 mOhm Max |
| Current Saturation - Series | 1.32A | Current Saturation - Parallel | 2.65A |
| Current Rating - Series | 1.51A | Current Rating - Parallel | 3.02A |
