CTX20-3-R

Bussmann (Eaton)

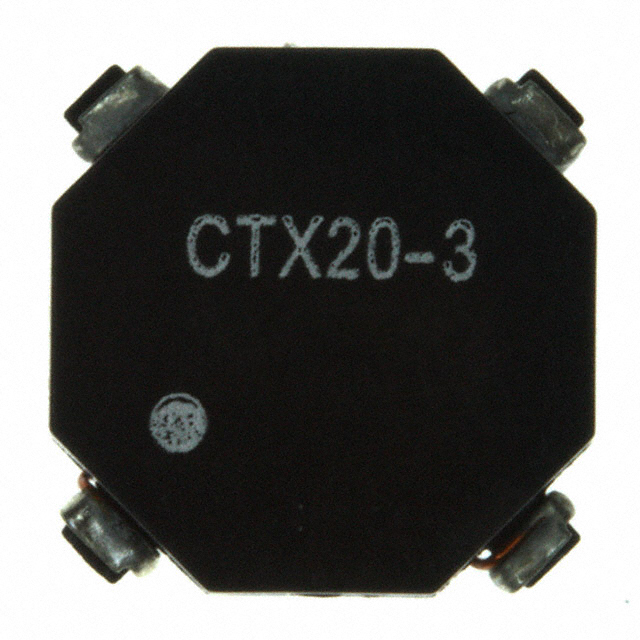

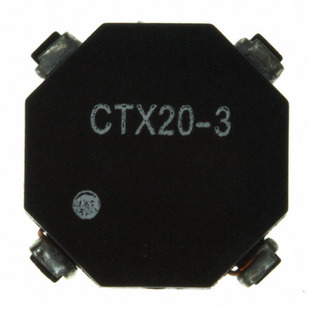

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX20-3-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 20.18UH SMD
Datasheets:	CTX20-3-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29717 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29717 pcs

Reference Price (In US Dollars)

800 pcs: $1.09

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.09

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX20-3-R

Part Number	CTX20-3-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 20.18UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29717 pcs	Data sheet	CTX20-3-R.pdf
Tolerance	±20%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1008-2 CTX20-3
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	80.74µH	Inductance - Connected In Parallel	20.18µH
Height	0.190" (4.83mm)	Detailed Description	Unshielded 2 Coil Inductor Array 80.74µH Inductance - Connected in Series 20.18µH Inductance - Connected in Parallel 78 mOhm Max DC Resistance (DCR) - Parallel 1.5A Nonstandard
DC Resistance (DCR) - Series	312 mOhm Max	DC Resistance (DCR) - Parallel	78 mOhm Max
Current Rating - Series	750mA	Current Rating - Parallel	1.5A
