CTX15-4A-R

Bussmann (Eaton)

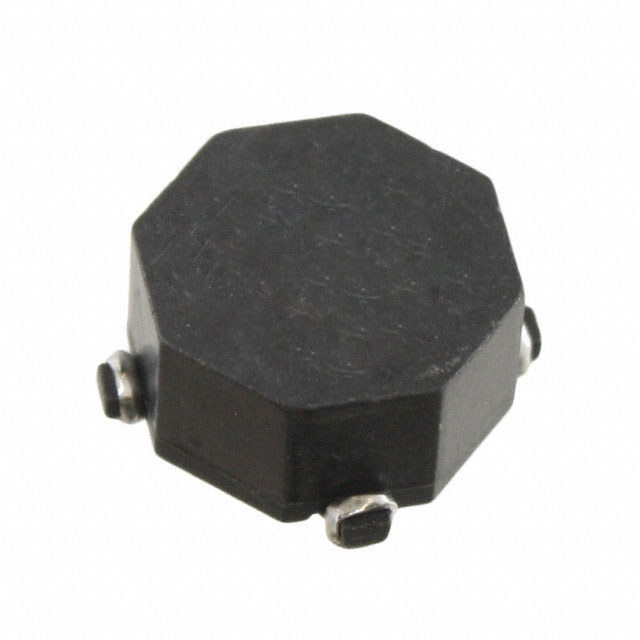

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX15-4A-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 14.7UH SMD
Datasheets:	CTX15-4A-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	27622 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 27622 pcs

Reference Price (In US Dollars)

1 pcs: $2.076

10 pcs: $1.886

100 pcs: $1.282

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.076

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX15-4A-R

Part Number	CTX15-4A-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 14.7UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	27622 pcs	Data sheet	CTX15-4A-R.pdf
Tolerance	±25%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC® PLUS
Ratings	-	Packaging	Original-Reel®
Package / Case	Nonstandard	Other Names	283-4060-6
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	58.81µH	Inductance - Connected In Parallel	14.7µH
Height	0.250" (6.35mm)	Detailed Description	Unshielded 2 Coil Inductor Array 58.81µH Inductance - Connected in Series 14.7µH Inductance - Connected in Parallel 29 mOhm Max DC Resistance (DCR) - Parallel 3.87A Nonstandard
DC Resistance (DCR) - Series	117 mOhm Max	DC Resistance (DCR) - Parallel	29 mOhm Max
Current Saturation - Series	1.73A	Current Saturation - Parallel	3.46A
Current Rating - Series	1.94A	Current Rating - Parallel	3.87A
