CTX100-3-R

Bussmann (Eaton)

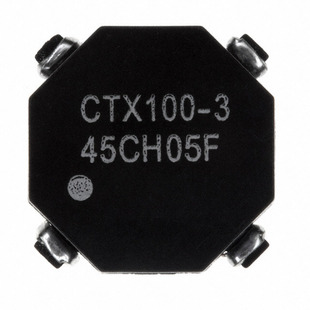

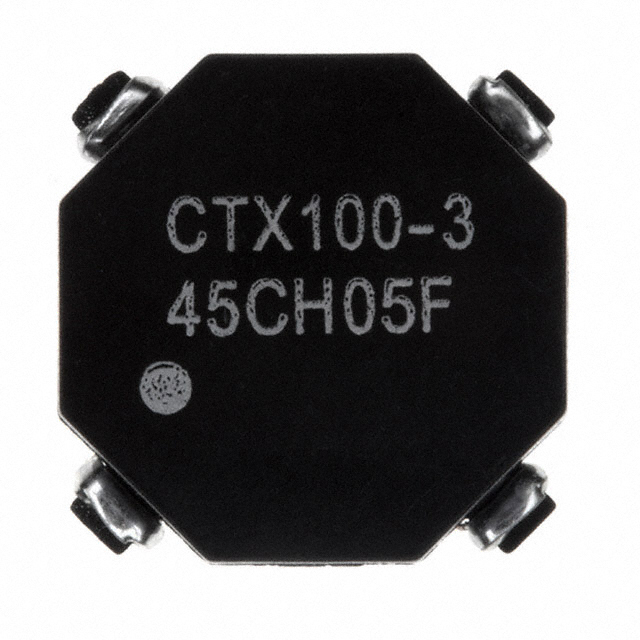

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX100-3-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 101.4UH SMD
Datasheets:	CTX100-3-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	34297 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 34297 pcs

Reference Price (In US Dollars)

800 pcs: $1.05

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.05

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX100-3-R

Part Number	CTX100-3-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 101.4UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	34297 pcs	Data sheet	CTX100-3-R.pdf
Tolerance	±20%	Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1197-2
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	405.6µH	Inductance - Connected In Parallel	101.4µH
Height	0.190" (4.83mm)	Detailed Description	Unshielded 2 Coil Inductor Array 405.6µH Inductance - Connected in Series 101.4µH Inductance - Connected in Parallel 345 mOhm Max DC Resistance (DCR) - Parallel 700mA Nonstandard
DC Resistance (DCR) - Series	1.381 Ohm Max	DC Resistance (DCR) - Parallel	345 mOhm Max
Current Rating - Series	350mA	Current Rating - Parallel	700mA
