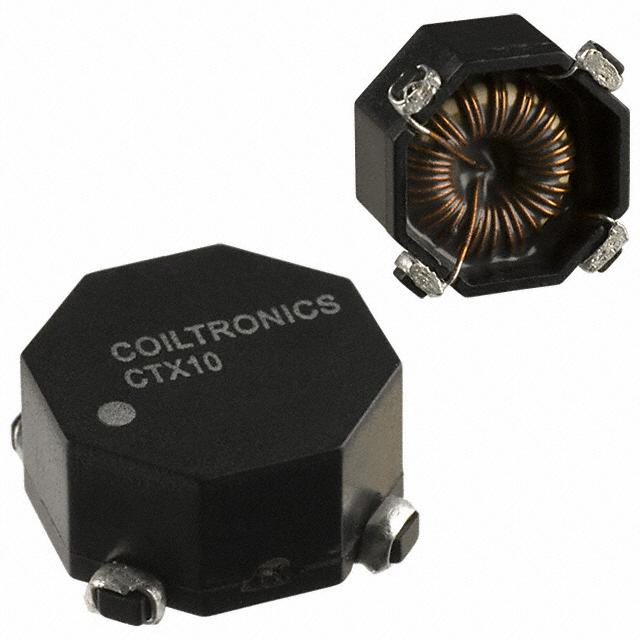

Part Number | CTX10-4A-R | Manufacturer | Bussmann (Eaton) |
---|---|---|---|
Description | INDUCT ARRAY 2 COIL 10.53UH SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 29313 pcs | Data sheet | CTX10-4A-R.pdf |
Tolerance | ±25% | Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) |
Shielding | Unshielded | Series | OCTA-PAC® PLUS |
Ratings | - | Packaging | Original-Reel® |
Package / Case | Nonstandard | Other Names | 513-1796-6 |
Operating Temperature | -40°C ~ 85°C | Number of Coils | 2 |
Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Inductance - Connected In Series | 42.11µH | Inductance - Connected In Parallel | 10.53µH |
Height | 0.250" (6.35mm) | Detailed Description | Unshielded 2 Coil Inductor Array 42.11µH Inductance - Connected in Series 10.53µH Inductance - Connected in Parallel 20 mOhm Max DC Resistance (DCR) - Parallel 4.67A Nonstandard |
DC Resistance (DCR) - Series | 81 mOhm Max | DC Resistance (DCR) - Parallel | 20 mOhm Max |
Current Saturation - Series | 2.05A | Current Saturation - Parallel | 4.09A |
Current Rating - Series | 2.33A | Current Rating - Parallel | 4.67A |
