CTX10-1-R

Bussmann (Eaton)

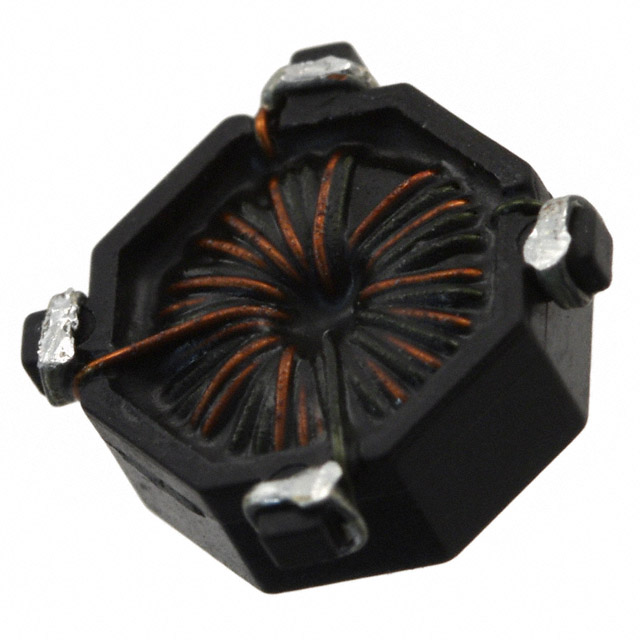

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CTX10-1-R
Manufacturer/Brand:	Bussmann (Eaton)
Product description	INDUCT ARRAY 2 COIL 10UH SMD
Datasheets:	CTX10-1-R.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	36399 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 36399 pcs

Reference Price (In US Dollars)

1100 pcs: $0.92

3300 pcs: $0.889

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.92

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CTX10-1-R

Part Number	CTX10-1-R	Manufacturer	Bussmann (Eaton)
Description	INDUCT ARRAY 2 COIL 10UH SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	36399 pcs	Data sheet	CTX10-1-R.pdf
Tolerance	±20%	Size / Dimension	0.450" L x 0.450" W (11.43mm x 11.43mm)
Shielding	Unshielded	Series	OCTA-PAC®
Ratings	-	Packaging	Tape & Reel (TR)
Package / Case	Nonstandard	Other Names	513-1003-2 CTX10-1 CTX101R
Operating Temperature	-40°C ~ 85°C	Number of Coils	2
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Inductance - Connected In Series	40µH	Inductance - Connected In Parallel	10µH
Height	0.165" (4.19mm)	Detailed Description	Unshielded 2 Coil Inductor Array 40µH Inductance - Connected in Series 10µH Inductance - Connected in Parallel 44 mOhm Max DC Resistance (DCR) - Parallel 1.9A Nonstandard
DC Resistance (DCR) - Series	176 mOhm Max	DC Resistance (DCR) - Parallel	44 mOhm Max
Current Rating - Series	950mA	Current Rating - Parallel	1.9A
