1261E504L

Bomar (Winchester Electronics)

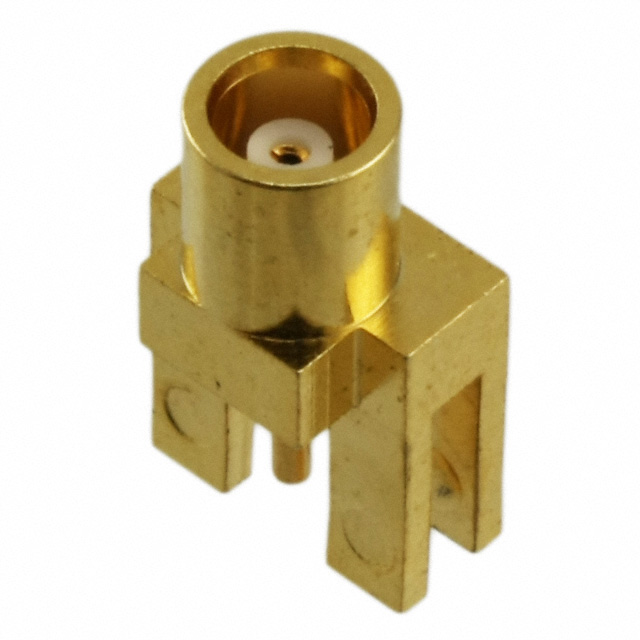

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1261E504L
Manufacturer/Brand:	Bomar (Winchester Electronics)
Product description	CONN MCX JACK STR 50OHM EDGE MNT
Datasheets:	1261E504L.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4898 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4898 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1261E504L

Part Number	1261E504L	Manufacturer	Bomar (Winchester Electronics)
Description	CONN MCX JACK STR 50OHM EDGE MNT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4898 pcs	Data sheet	1261E504L.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	E-Snap™	Packaging	Tray
Other Names	991-1049	Operating Temperature	-40°C ~ 65°C
Number of Ports	1	Mounting Type	Board Edge, End Launch
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	-	Ingress Protection	-
Includes	-	Impedance	50 Ohm
Housing Color	Gold	Frequency - Max	6GHz
Features	-	Fastening Type	Snap-On
Dielectric Material	Polytetrafluoroethylene (PTFE)	Detailed Description	MCX Connector Jack, Female Socket 50 Ohm Board Edge, End Launch Solder
Contact Termination	Solder	Connector Type	Jack, Female Socket
Connector Style	MCX	Center Contact Plating	Gold
Center Contact Material	-	Cable Group	-
Body Material	Brass	Body Finish	Gold
