Avago Technologies (Broadcom Limited)

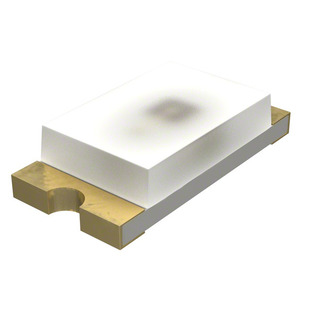

| Part Number | HSMZ-C170 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RED DIFFUSED CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 338260 pcs | Data sheet | 1.HSMZ-C170.pdf2.HSMZ-C170.pdf |
| Wavelength - Peak | 643nm | Wavelength - Dominant | 631nm |
| Voltage - Forward (Vf) (Typ) | 2.2V | Viewing Angle | 170° |
| Supplier Device Package | Chip LED | Size / Dimension | 2.00mm L x 1.25mm W |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) | Other Names | 516-2279-2 HSMZ-C170-ND HSMZC170 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Millicandela Rating | 165mcd | Manufacturer Standard Lead Time | 5 Weeks |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 1.40mm x 1.25mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.80mm | Features | - |
| Detailed Description | Red 631nm LED Indication - Discrete 2.2V 0805 (2012 Metric) | Current - Test | 20mA |
| Configuration | Standard | Color | Red |
| Base Part Number | HSMZ-C170 |
