Avago Technologies (Broadcom Limited)

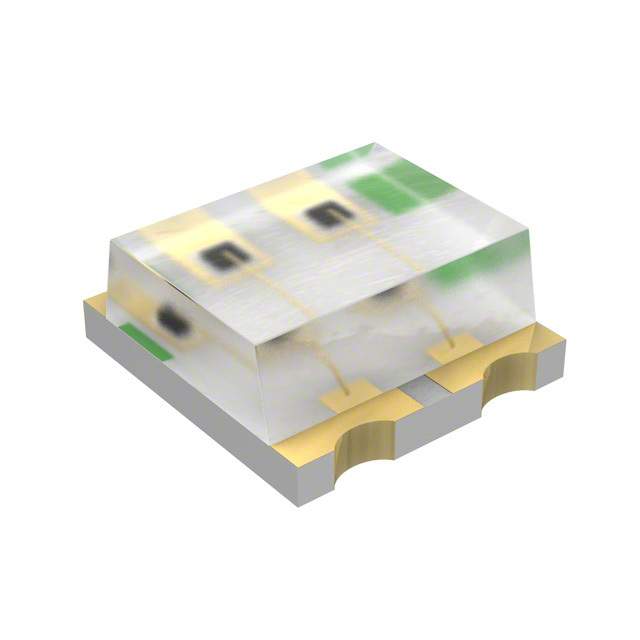

| Part Number | HSMF-C114 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED RGB DIFFUSED CHIP SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80644 pcs | Data sheet | 1.HSMF-C114.pdf2.HSMF-C114.pdf |
| Wavelength - Peak | 637nm Red, 523nm Green, 468nm Blue | Wavelength - Dominant | 626nm Red, 525nm Green, 470nm Blue |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 3.4V Green, 3.4V Blue | Viewing Angle | 140° Red, 145° Green, 145° Blue |
| Supplier Device Package | Chip LED | Size / Dimension | 1.60mm L x 1.50mm W |
| Series | - | Packaging | Tape & Reel (TR) |
| Package / Case | 0606 (1616 Metric) | Other Names | 516-1795-2 HSMF-C114-ND HSMFC114 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 2A (4 Weeks) |
| Millicandela Rating | 85mcd Red, 180mcd Green, 70mcd Blue | Manufacturer Standard Lead Time | 5 Weeks |
| Lens Transparency | Diffused | Lens Style/Size | Rectangle with Flat Top, 1.10mm x 1.50mm |
| Lens Color | White | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height (Max) | 0.35mm | Features | - |
| Detailed Description | Red, Green, Blue (RGB) 626nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 1.9V Red, 3.4V Green, 3.4V Blue 0606 (1616 Metric) | Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Configuration | Common Anode | Color | Red, Green, Blue (RGB) |
| Base Part Number | HSMF-C11 |
