HDSM-283C

Avago Technologies (Broadcom Limited)

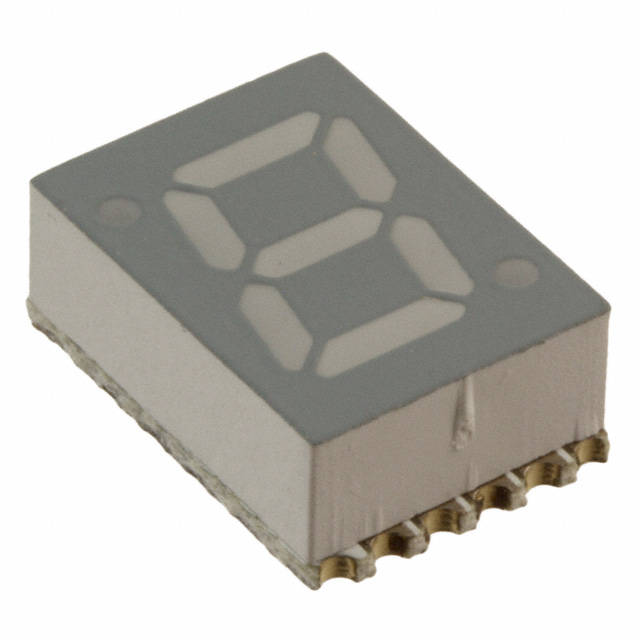

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HDSM-283C
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	DISPLAY 1DIGIT RED CC 0.28"
Datasheets:	HDSM-283C.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	64267 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 64267 pcs

Reference Price (In US Dollars)

1000 pcs: $0.361

2000 pcs: $0.341

5000 pcs: $0.328

10000 pcs: $0.322

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.361

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HDSM-283C

Part Number	HDSM-283C	Manufacturer	Avago Technologies (Broadcom Limited)
Description	DISPLAY 1DIGIT RED CC 0.28"	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	64267 pcs	Data sheet	HDSM-283C.pdf
Wavelength - Peak	632nm	Voltage - Forward (Vf) (Typ)	2V
Size / Dimension	0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm)	Series	-
Power Dissipation (Max)	65mW	Packaging	Tape & Reel (TR)
Package / Case	12-SMD, No Lead, 11 Pads	Other Names	516-3011-2 HDSM-283C-ND
Number of Characters	1	Moisture Sensitivity Level (MSL)	3 (168 Hours)
Millicandela Rating	7.5mcd	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Display Type	7-Segment
Digit/Alpha Size	0.28" (7.00mm)	Detailed Description	Character LED Display Module Red 7-Segment 1 Character Common Cathode 2V 20mA 0.425" H x 0.295" W x 0.124" D (10.80mm x 7.50mm x 3.15mm) 12-SMD, No Lead, 11 Pads
Current - Test	20mA	Common Pin	Common Cathode
Color	Red
