HCPL-4100-000E

Avago Technologies (Broadcom Limited)

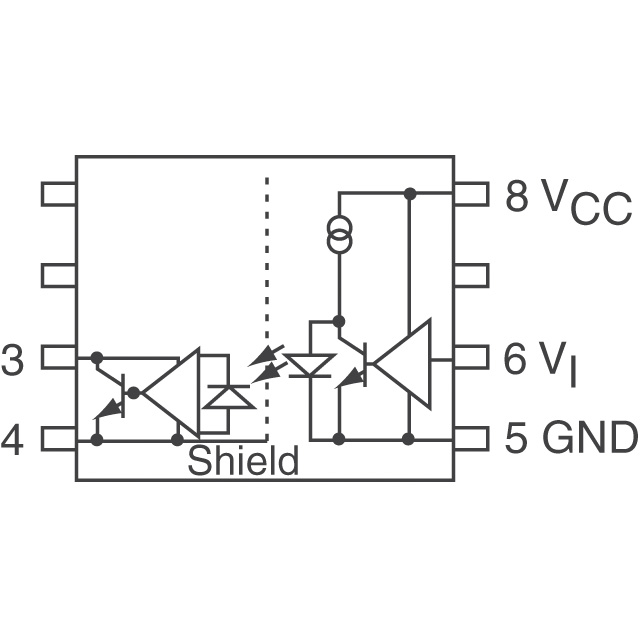

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCPL-4100-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	OPTOISO 3.75KV TRANSMITTER 8DIP
Datasheets:	HCPL-4100-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31167 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31167 pcs

Reference Price (In US Dollars)

1 pcs: $2.66

10 pcs: $2.408

25 pcs: $1.907

100 pcs: $1.606

250 pcs: $1.505

500 pcs: $1.38

1000 pcs: $1.305

2500 pcs: $1.254

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.66

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCPL-4100-000E

Part Number	HCPL-4100-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	OPTOISO 3.75KV TRANSMITTER 8DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31167 pcs	Data sheet	HCPL-4100-000E.pdf
Voltage - Supply	4.5 V ~ 20 V	Voltage - Isolation	3750Vrms
Type	Current Loop Transmitter	Supplier Device Package	8-DIP
Series	-	Rise / Fall Time (Typ)	16ns, 23ns
Propagation Delay tpLH / tpHL (Max)	1.6µs, 1µs	Packaging	Tube
Package / Case	8-DIP (0.300", 7.62mm)	Other Names	516-1546-5 HCPL4100000E
Operating Temperature	-40°C ~ 85°C	Number of Channels	1
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Logic	Detailed Description	Optoisolator Current Loop Transmitter 3750Vrms 1 Channel 8-DIP
Current - Output / Channel	30mA	Common Mode Transient Immunity (Min)	1kV/µs
Approvals	CSA, UR
