HCPL-090J-000E

Avago Technologies (Broadcom Limited)

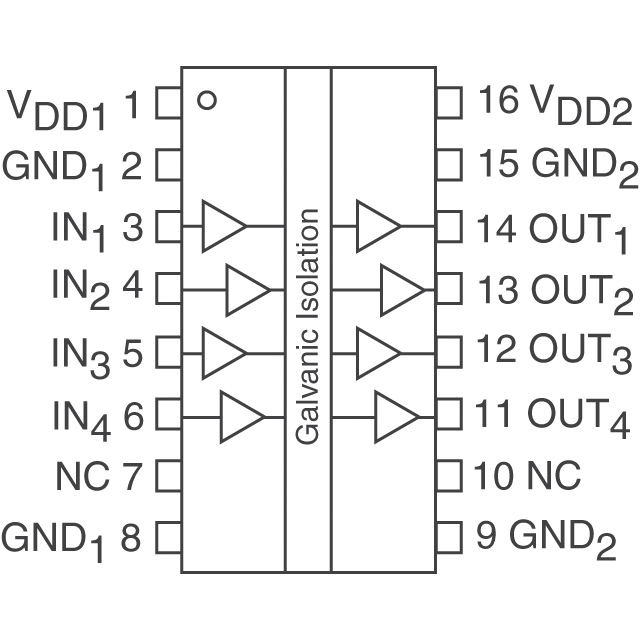

Image may be representation. See specifications for product details.

Product Overview

Part Number:	HCPL-090J-000E
Manufacturer/Brand:	Avago Technologies (Broadcom Limited)
Product description	DGTL ISO 2.5KV GEN PURP 16SOIC
Datasheets:	HCPL-090J-000E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	22269 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 22269 pcs

Reference Price (In US Dollars)

1 pcs: $3.266

50 pcs: $2.678

100 pcs: $2.417

500 pcs: $2.025

1000 pcs: $1.764

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.266

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of HCPL-090J-000E

Part Number	HCPL-090J-000E	Manufacturer	Avago Technologies (Broadcom Limited)
Description	DGTL ISO 2.5KV GEN PURP 16SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	22269 pcs	Data sheet	HCPL-090J-000E.pdf
Voltage - Supply	3 V ~ 5.5 V	Voltage - Isolation	2500Vrms
Type	General Purpose	Technology	GMR (Giant Magnetoresistive)
Supplier Device Package	16-SOIC	Series	-
Rise / Fall Time (Typ)	1ns, 1ns	Pulse Width Distortion (Max)	3ns
Propagation Delay tpLH / tpHL (Max)	15ns, 15ns	Packaging	Tube
Package / Case	16-SOIC (0.154", 3.90mm Width)	Other Names	516-1875-5 HCPL-090J-000E-ND HCPL090J000E
Operating Temperature	-55°C ~ 125°C	Number of Channels	4
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Isolated Power	No	Inputs - Side 1/Side 2	4/0
Detailed Description	General Purpose Digital Isolator 2500Vrms 4 Channel 110MBd 15kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)	Data Rate	110MBd
Common Mode Transient Immunity (Min)	15kV/µs	Channel Type	Unidirectional
