Avago Technologies (Broadcom Limited)
| Part Number | HCPL-0723-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 3.75KV PUSH PULL 8SO | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 27130 pcs | Data sheet | HCPL-0723-000E.pdf |
| Voltage - Supply | 4.5 V ~ 5.5 V | Voltage - Isolation | 3750Vrms |
| Voltage - Forward (Vf) (Typ) | - | Supplier Device Package | 8-SO |
| Series | - | Rise / Fall Time (Typ) | 8ns, 6ns |
| Propagation Delay tpLH / tpHL (Max) | 22ns, 22ns | Packaging | Tube |

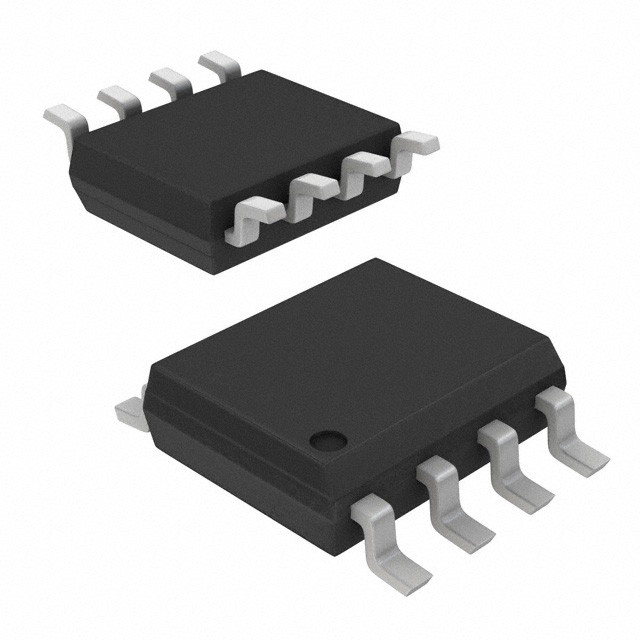

| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Output Type | Push-Pull, Totem Pole |
| Other Names | 516-1640-5 HCPL0723000E |
Operating Temperature | -40°C ~ 85°C |
| Number of Channels | 1 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Inputs - Side 1/Side 2 | 1/0 |
| Input Type | Logic | Detailed Description | Logic Output Optoisolator 50MBd Push-Pull, Totem Pole 3750Vrms 1 Channel 10kV/µs CMTI 8-SO |
| Data Rate | 50MBd | Current - Output / Channel | 10mA |
| Current - DC Forward (If) (Max) | - | Common Mode Transient Immunity (Min) | 10kV/µs |
