Avago Technologies (Broadcom Limited)

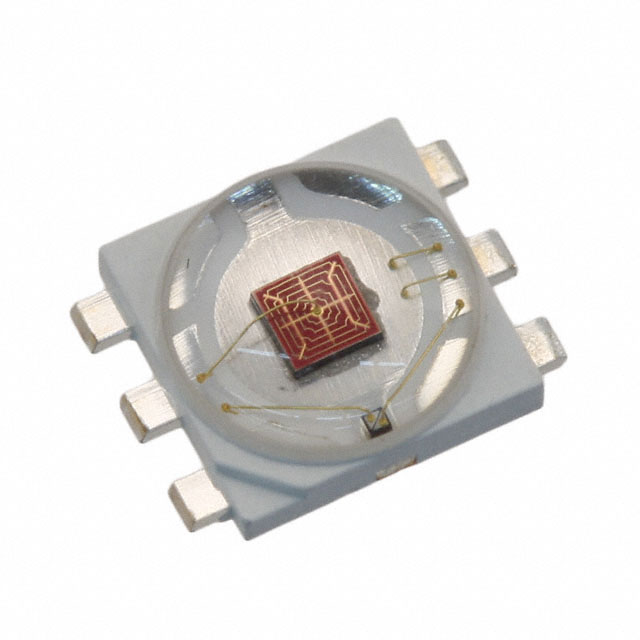

| Part Number | ASMT-JR30-ARS01 | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | LED MINI LIGHT SOURCE 3W RED | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 59170 pcs | Data sheet | ASMT-JR30-ARS01.pdf |
| Wavelength | 628nm (620nm ~ 635nm) | Voltage - Forward (Vf) (Typ) | 2.1V |
| Viewing Angle | 165° | Thermal Resistance of Package | 9°C/W |
| Temperature - Test | 25°C | Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Series | - |
| Packaging | Tape & Reel (TR) | Package / Case | 6-SMD, Flat Lead Exposed Pad |
| Other Names | 516-2225-2 ASMT-JR30-ARS01-ND ASMTJR30ARS01 |
Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 2A (4 Weeks) | Manufacturer Standard Lead Time | 12 Weeks |
| Lumens/Watt @ Current - Test | 95 lm/W | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height - Seated (Max) | 0.077" (1.95mm) | Flux @ Current/Temperature - Test | 70 lm (52 lm ~ 87 lm) |
| Detailed Description | LED Lighting Color - Red 628nm (620nm ~ 635nm) 6-SMD, Flat Lead Exposed Pad | Current - Test | 350mA |
| Current - Max | 700mA | Color | Red |
| Base Part Number | ASMT-JR30 |
