Avago Technologies (Broadcom Limited)

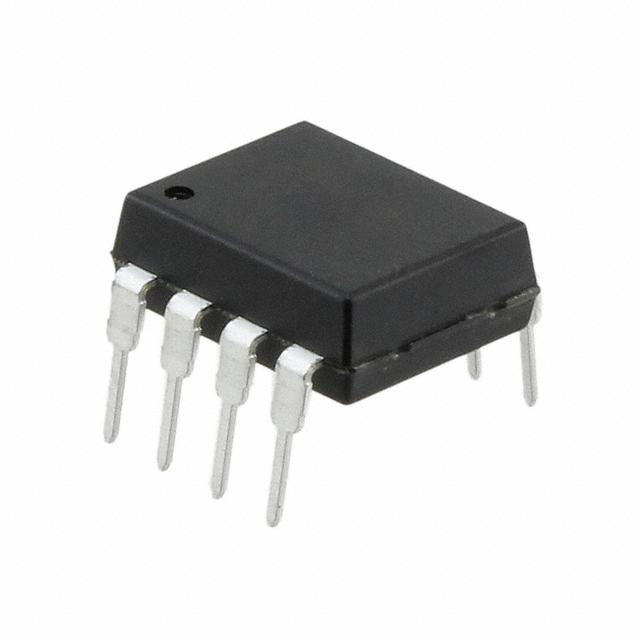

| Part Number | ACNW3190-000E | Manufacturer | Avago Technologies (Broadcom Limited) |
|---|---|---|---|
| Description | OPTOISO 5KV 1CH GATE DRIVER 8DIP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39581 pcs | Data sheet | ACNW3190-000E.pdf |
| Voltage - Supply | 15 V ~ 30 V | Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | 1.6V | Technology | Optical Coupling |
| Supplier Device Package | 8-DIP | Series | - |
| Rise / Fall Time (Typ) | 100ns, 100ns | Pulse Width Distortion (Max) | 300ns |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns | Packaging | Tube |
| Package / Case | 8-DIP (0.354", 9.00mm) | Other Names | 516-2890 ACNW3190-000E-ND Q3733988 |
| Operating Temperature | -40°C ~ 100°C | Number of Channels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 5A Gate Driver Optical Coupling 5000Vrms 1 Channel 8-DIP | Current - Peak Output | 5A |
| Current - Output High, Low | 4A, 4A | Current - DC Forward (If) (Max) | 25mA |
| Common Mode Transient Immunity (Min) | 15kV/µs | Approvals | CSA, IEC/EN/DIN, UR |
