AW24MCHL-H2

Artaflex Inc.

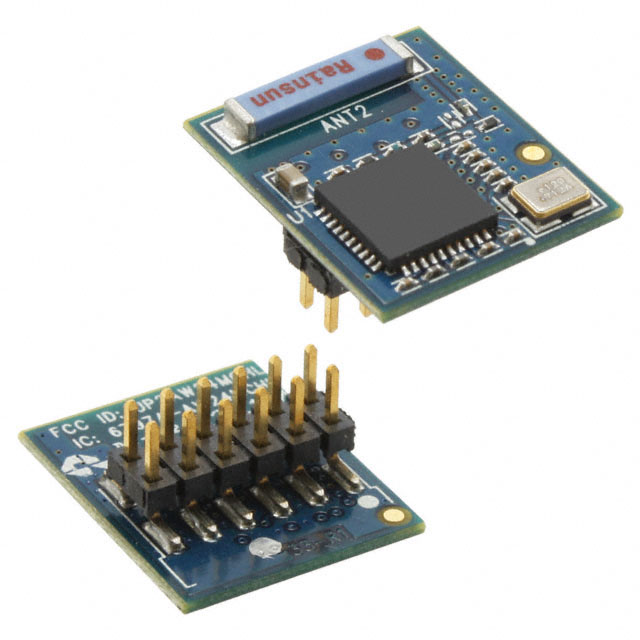

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AW24MCHL-H2
Manufacturer/Brand:	Artaflex Inc.
Product description	RF TXRX MODULE ISM>1GHZ CHIP ANT
Datasheets:	1.AW24MCHL-H2.pdf 2.AW24MCHL-H2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7089 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7089 pcs

Reference Price (In US Dollars)

1 pcs: $6.42

10 pcs: $5.808

50 pcs: $5.35

100 pcs: $4.891

250 pcs: $4.586

500 pcs: $4.28

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.42

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AW24MCHL-H2

Part Number	AW24MCHL-H2	Manufacturer	Artaflex Inc.
Description	RF TXRX MODULE ISM>1GHZ CHIP ANT	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7089 pcs	Data sheet	1.AW24MCHL-H2.pdf 2.AW24MCHL-H2.pdf
Voltage - Supply	2.4 V ~ 3.6 V	Utilized IC / Part	CYRF7936
Series	-	Serial Interfaces	SPI
Sensitivity	-97dBm	RF Family/Standard	General ISM > 1GHZ
Protocol	-	Power - Output	4dBm
Packaging	Bulk	Package / Case	Module
Other Names	748-1004 AFI-AW24MCHL-H2-01 AW24MCHL AW24MCHLH2	Operating Temperature	-20°C ~ 70°C
Mounting Type	Surface Mount	Modulation	DSSS, GFSK
Memory Size	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Frequency	2.4GHz	Data Rate	1Mbps
Current - Transmitting	20.8mA ~ 34.1mA	Current - Receiving	18.4mA ~ 21.2mA
Antenna Type	Integrated, Chip
