SA53-IHZ

Apex Microtechnology

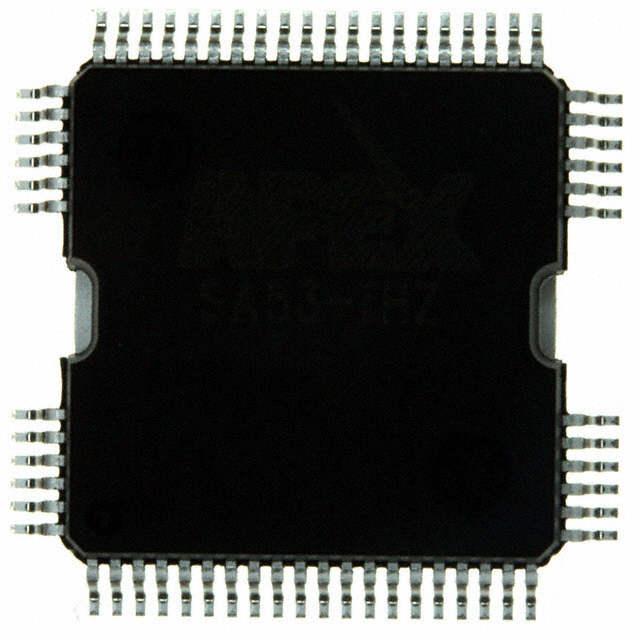

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SA53-IHZ
Manufacturer/Brand:	Apex Microtechnology
Product description	IC MOTOR DRIVER PAR 64QFP
Datasheets:	SA53-IHZ.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5753 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5753 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SA53-IHZ

Part Number	SA53-IHZ	Manufacturer	Apex Microtechnology
Description	IC MOTOR DRIVER PAR 64QFP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5753 pcs	Data sheet	SA53-IHZ.pdf
Voltage - Supply	4.5 V ~ 5.5 V	Voltage - Load	8.3 V ~ 60 V
Technology	DMOS	Supplier Device Package	64-PowerQFP
Series	Apex Precision Power®	Rds On (Typ)	400 mOhm
Packaging	Tray	Package / Case	64-PowerQFP
Output Configuration	Half Bridge (2)	Other Names	598-1785
Operating Temperature	-25°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Load Type	Inductive
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Interface	PWM
Features	-	Fault Protection	Current Limiting, Over Temperature, Shoot-Through, UVLO
Detailed Description	Half Bridge (2) Driver DC Motors, General Purpose, Solenoids, Stepper Motors DMOS 64-PowerQFP	Current - Peak Output	10A
Current - Output / Channel	3A	Base Part Number	SA*
Applications	DC Motors, General Purpose, Solenoids, Stepper Motors
