SA305EX

Apex MicrotechnologyApex Microtechnology

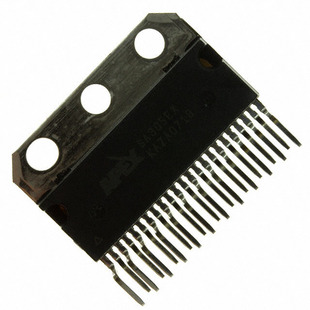

SA305EX Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SA305EX
Manufacturer/Brand: Apex Microtechnology
Product description IC MOTOR DRIVER PWM 23SIP
Datasheets: SA305EX.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5011 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 5011 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SA305EX

Part Number SA305EX Manufacturer Apex Microtechnology
Description IC MOTOR DRIVER PWM 23SIP Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5011 pcs Data sheet SA305EX.pdf
Voltage - Supply 4.5 V ~ 5.5 V Voltage - Load 9.8 V ~ 60 V
Technology Power MOSFET Supplier Device Package 23-SIP
Series Apex Precision Power® Rds On (Typ) 600 mOhm LS, 600 mOhm HS
Packaging Tube Package / Case 23-SIP Formed Leads
Output Configuration Half Bridge (3) Other Names 598-1360
Operating Temperature -40°C ~ 150°C (TJ) Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Load Type Inductive
Lead Free Status / RoHS Status Lead free / RoHS Compliant Interface PWM
Features Slew Rate Controlled, Status Flag Fault Protection Current Limiting, Over Temperature, Shoot Through, Short Circuit
Detailed Description Half Bridge (3) Driver DC Motors, Solenoids Power MOSFET 23-SIP Current - Peak Output 10A
Current - Output / Channel 5A Base Part Number SA30*
Applications DC Motors, Solenoids
