AOZ8014DI

Alpha and Omega Semiconductor, Inc.Alpha and Omega Semiconductor, Inc.

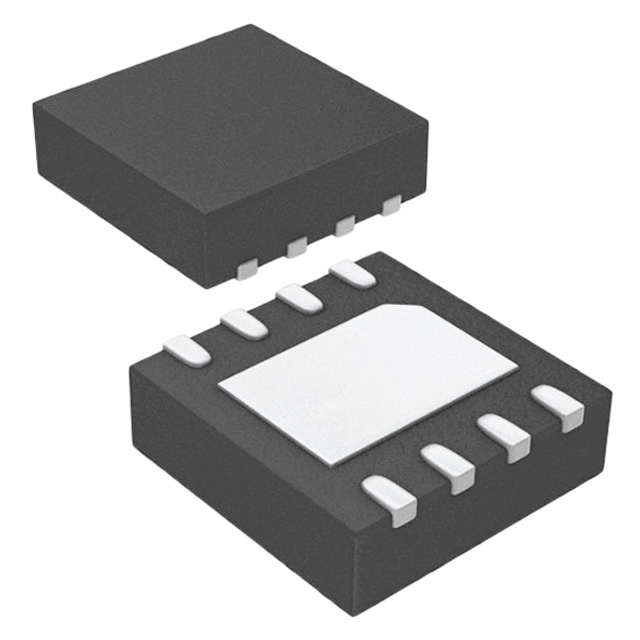

AOZ8014DI Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: AOZ8014DI
Manufacturer/Brand: Alpha and Omega Semiconductor, Inc.
Product description FILTER RC(PI) 100 OHM/17PF SMD
Datasheets:
RoHs Status Lead free / RoHS Compliant
Stock Condition 470959 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 470959 pcs
Reference Price (In US Dollars)
6000 pcs
$0.04
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.04

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of AOZ8014DI

Part Number AOZ8014DI Manufacturer Alpha and Omega Semiconductor, Inc.
Description FILTER RC(PI) 100 OHM/17PF SMD Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 470959 pcs Data sheet
Voltage - Rated 5V Values R = 100 Ohms, C = 17pF
Type Low Pass Technology RC (Pi)
Size / Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm) Series -
Resistance - Channel (Ohms) 100 Packaging Tape & Reel (TR)
Package / Case 8-WFDFN Exposed Pad Operating Temperature -40°C ~ 85°C
Number of Channels 4 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Manufacturer Standard Lead Time 26 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height 0.031" (0.79mm)
Filter Order 2nd ESD Protection Yes
Detailed Description RC (Pi) EMI Filter 2nd Order Low Pass 4 Channel R = 100 Ohms, C = 17pF 20mA 8-WFDFN Exposed Pad Current 20mA
Center / Cutoff Frequency 125MHz (Cutoff) Attenuation Value -25dB @ 800MHz ~ 3GHz
Applications Data Lines for Mobile Devices
