SWV-0.85-680

AlfaMag Electronics (AMGIS)

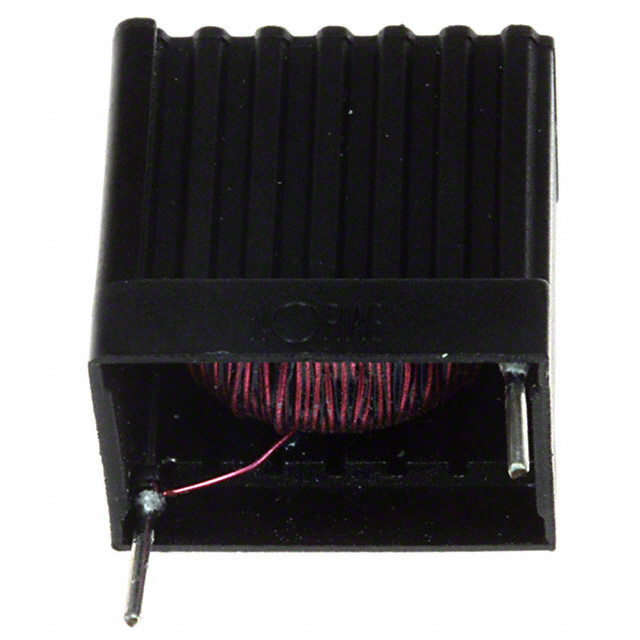

Image may be representation. See specifications for product details.

Product Overview

Part Number:	SWV-0.85-680
Manufacturer/Brand:	AlfaMag Electronics (AMGIS)
Product description	FIXED IND 680UH 850MA 1.25 OHM
Datasheets:	SWV-0.85-680.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21232 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21232 pcs

Reference Price (In US Dollars)

200 pcs: $1.454

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.454

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of SWV-0.85-680

Part Number	SWV-0.85-680	Manufacturer	AlfaMag Electronics (AMGIS)
Description	FIXED IND 680UH 850MA 1.25 OHM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21232 pcs	Data sheet	SWV-0.85-680.pdf
Type	Toroidal	Tolerance	±20%
Supplier Device Package	-	Size / Dimension	0.709" L x 0.512" W (18.00mm x 13.00mm)
Shielding	Unshielded	Series	SW
Ratings	-	Q @ Freq	-
Packaging	Bulk	Package / Case	Radial
Other Names	SWV0.85680 TE2023	Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Core	Iron Powder	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Inductance Frequency - Test	10kHz
Inductance	680µH	Height - Seated (Max)	0.709" (18.00mm)
Frequency - Self Resonant	-	Detailed Description	680µH Unshielded Toroidal Inductor 850mA 1.25 Ohm Max Radial
DC Resistance (DCR)	1.25 Ohm Max	Current Rating	850mA
Current - Saturation	-
