327717

Agastat Relays / TE Connectivity

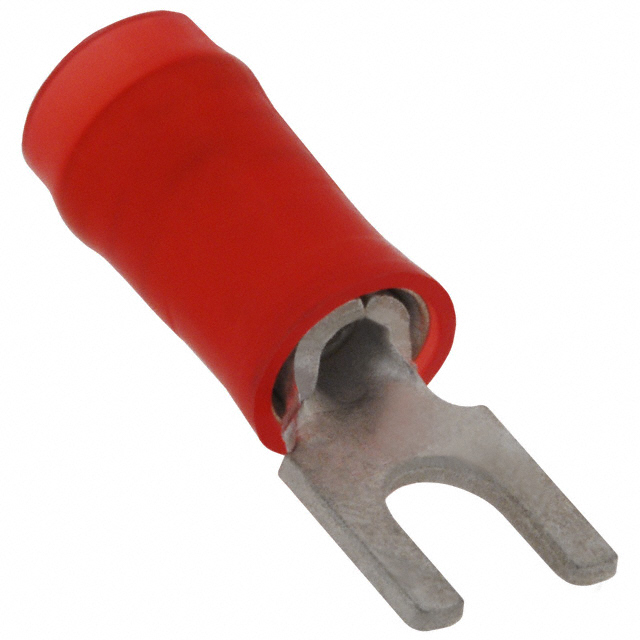

Image may be representation. See specifications for product details.

Product Overview

Part Number:	327717
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SPADE TERM 16-22AWG #4 RED
Datasheets:	327717.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	235001 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 235001 pcs

Reference Price (In US Dollars)

1 pcs: $0.189

10 pcs: $0.178

25 pcs: $0.16

50 pcs: $0.142

100 pcs: $0.137

250 pcs: $0.125

500 pcs: $0.119

1000 pcs: $0.098

2500 pcs: $0.089

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.189

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 327717

Part Number	327717	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SPADE TERM 16-22AWG #4 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	235001 pcs	Data sheet	327717.pdf
Wire Gauge	16-22 AWG	Width - Outer Edges	0.218" (5.54mm)
Tongue Inside Opening	0.119" (3.02mm)	Termination	Crimp
Terminal Type	Standard	Stud/Tab Size	4 Stud
Series	PIDG	Packaging	Bulk
Other Names	A0896	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	13 Weeks	Length - Termination	0.404" (10.26mm)
Length - Ring Center to Termination	0.156" (3.96mm)	Length - Overall	0.674" (17.12mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.105" ~ 0.140" (2.67mm ~ 3.56mm)
Insulation	Insulated	Features	Serrated Termination
Detailed Description	Red 4 Stud Spade Terminal Connector Crimp 16-22 AWG	Contact Material	Copper
Contact Finish	Tin	Color	Red
