3-641126-5

Agastat Relays / TE Connectivity

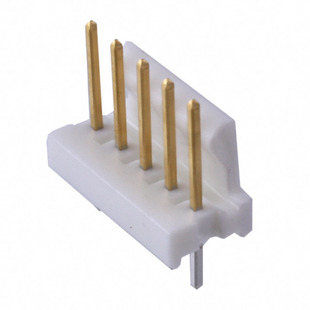

Image may be representation. See specifications for product details.

Product Overview

Part Number:	3-641126-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 5POS STR .100 15GOLD
Datasheets:	3-641126-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	91517 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 91517 pcs

Reference Price (In US Dollars)

1 pcs: $0.482

10 pcs: $0.425

100 pcs: $0.367

500 pcs: $0.30

1000 pcs: $0.267

5000 pcs: $0.233

10000 pcs: $0.222

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.482

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 3-641126-5

Part Number	3-641126-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 5POS STR .100 15GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	91517 pcs	Data sheet	3-641126-5.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	MTA-100	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.535" (13.59mm)	Other Names	3-641126-5-ND 36411265 A113513
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic	Insulation Height	0.305" (7.75mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 5 position 0.100" (2.54mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose
