Agastat Relays / TE Connectivity
| Part Number | 1969570-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

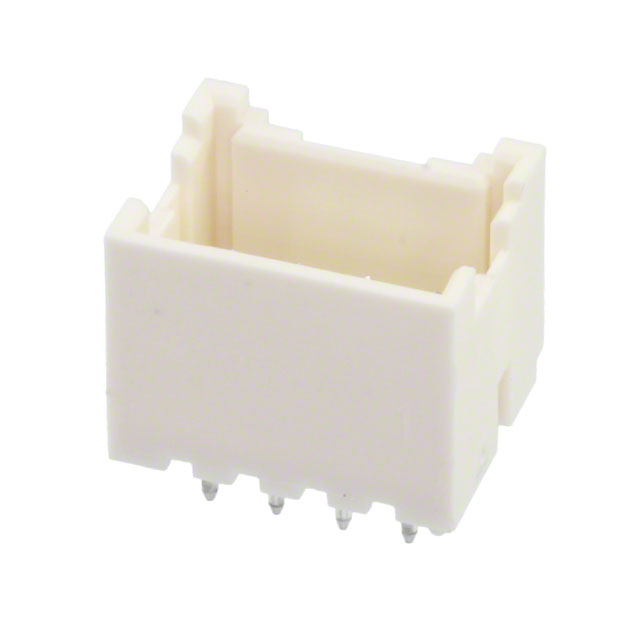

| Description | ASSY HDR VERT GWT BOSSED DUAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 206398 pcs | Data sheet | 1969570-8.pdf |
| Voltage Rating | 250VAC | Termination | Kinked Pin, Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | Economy Power 2.5 | Row Spacing - Mating | 0.098" (2.50mm) |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | A119485 |
| Operating Temperature | -55°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.386" (9.80mm) | Insulation Color | White |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 8 position 0.098" (2.50mm) |
| Current Rating | 4.2A | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | General Purpose, Industrial, Lighting |
