53325-1560

Affinity Medical Technologies - a Molex company

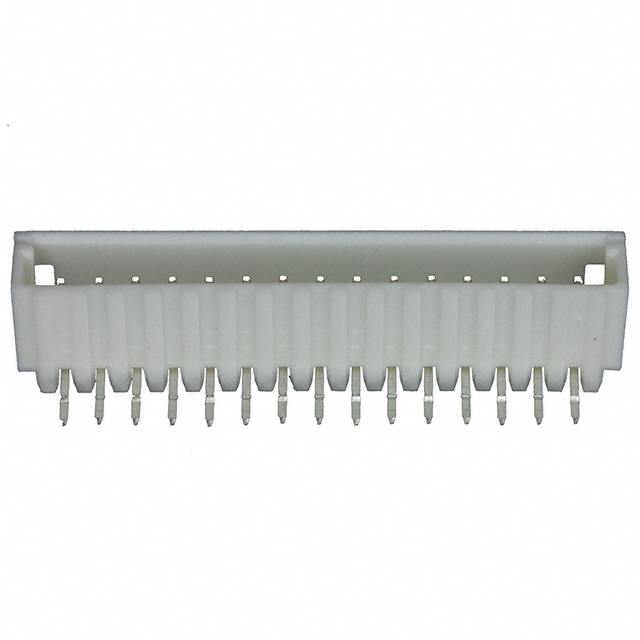

Image may be representation. See specifications for product details.

Product Overview

Part Number:	53325-1560
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2MM 15POS R/A TIN
Datasheets:	53325-1560.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5716 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5716 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 53325-1560

Part Number	53325-1560	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2MM 15POS R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5716 pcs	Data sheet	53325-1560.pdf
Voltage Rating	-	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mi II 53325	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	WM8339
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	15
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Insulation Height	0.191" (4.85mm)	Insulation Color	Natural
Ingress Protection	-	Features	-
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 15 position 0.079" (2.00mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	0.136" (3.45mm)
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	-
