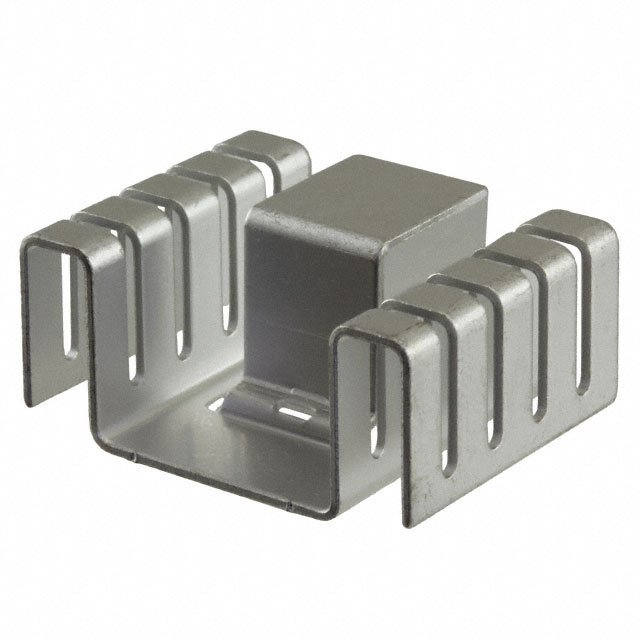

Part Number | 7109D/TRG | Manufacturer | Aavid Thermalloy |
---|---|---|---|
Description | HEATSINK TO-220 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 104939 pcs | Data sheet | 7109D/TRG.pdf |
Width | 1.000" (25.40mm) | Type | Top Mount |
Thermal Resistance @ Natural | 11.00°C/W | Thermal Resistance @ Forced Air Flow | 3.00°C/W @ 300 LFM |
Shape | Rectangular, Fins | Series | - |
Power Dissipation @ Temperature Rise | 2.0W @ 30°C | Package Cooled | TO-263 (D²Pak) |
Other Names | 7109D/TRG-ND 7109D/TRGTR 7109DG/TR |
Moisture Sensitivity Level (MSL) | Not Applicable |
Material Finish | Tin | Material | Copper |
Manufacturer Standard Lead Time | 7 Weeks | Length | 0.763" (19.38mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Off Base (Height of Fin) | 0.450" (11.43mm) |
Diameter | - | Detailed Description | Heat Sink TO-263 (D²Pak) Copper 2.0W @ 30°C Top Mount |
Attachment Method | SMD Pad |
