6022BG

Aavid Thermalloy

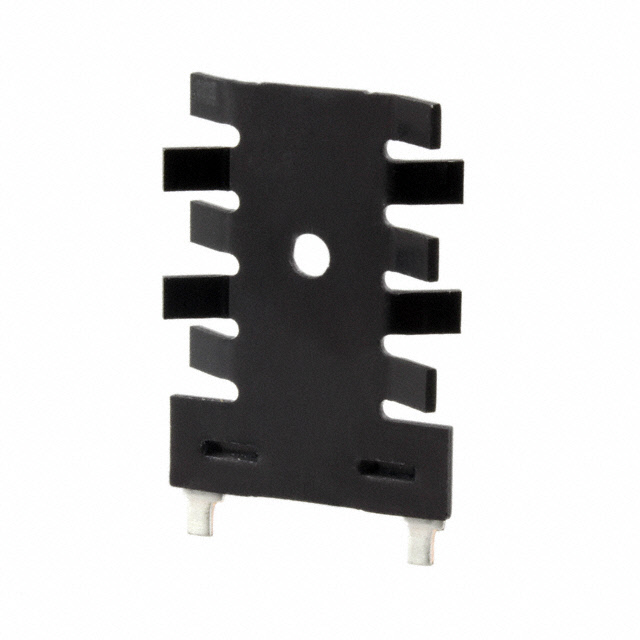

Image may be representation. See specifications for product details.

Product Overview

Part Number:	6022BG
Manufacturer/Brand:	Aavid Thermalloy
Product description	HEATSINK TO-220 STAGGERED FIN
Datasheets:	1.6022BG.pdf 2.6022BG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	68966 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 68966 pcs

Reference Price (In US Dollars)

1 pcs: $0.667

10 pcs: $0.635

25 pcs: $0.618

50 pcs: $0.602

100 pcs: $0.568

250 pcs: $0.535

500 pcs: $0.501

1000 pcs: $0.468

5000 pcs: $0.451

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.667

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 6022BG

Part Number	6022BG	Manufacturer	Aavid Thermalloy
Description	HEATSINK TO-220 STAGGERED FIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	68966 pcs	Data sheet	1.6022BG.pdf 2.6022BG.pdf
Width	0.875" (22.22mm)	Type	Board Level, Vertical
Thermal Resistance @ Natural	16.70°C/W	Thermal Resistance @ Forced Air Flow	6.00°C/W @ 400 LFM
Shape	Rectangular, Fins	Series	-
Power Dissipation @ Temperature Rise	2.0W @ 40°C	Package Cooled	TO-220
Other Names	043130	Moisture Sensitivity Level (MSL)	Not Applicable
Material Finish	Black Anodized	Material	Aluminum
Manufacturer Standard Lead Time	7 Weeks	Length	1.210" (30.73mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	0.250" (6.35mm)
Diameter	-	Detailed Description	Heat Sink TO-220 Aluminum 2.0W @ 40°C Board Level, Vertical
Attachment Method	Bolt On and PC Pin
