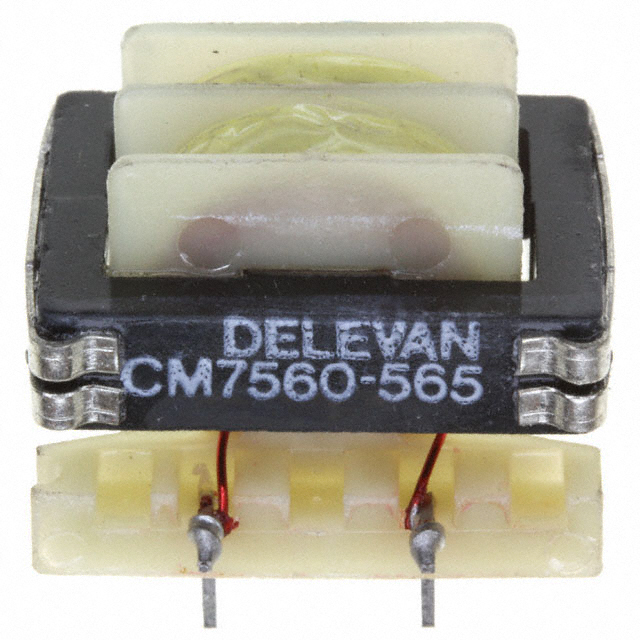

CM7560-565

API Delevan

Image may be representation. See specifications for product details.

Product Overview

Part Number:	CM7560-565
Manufacturer/Brand:	API Delevan
Product description	CMC 5.6MH 880MA 2LN TH
Datasheets:	CM7560-565.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	14469 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 14469 pcs

Reference Price (In US Dollars)

500 pcs: $2.083

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.083

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of CM7560-565

Part Number	CM7560-565	Manufacturer	API Delevan
Description	CMC 5.6MH 880MA 2LN TH	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	14469 pcs	Data sheet	CM7560-565.pdf
Voltage Rating - DC	-	Voltage Rating - AC	-
Size / Dimension	1.071" L x 0.858" W (27.20mm x 21.80mm)	Series	CM7560
Ratings	-	Packaging	Bulk
Package / Case	Vertical, 4 PC Pin	Other Names	CM7560-565 BULK 25
Operating Temperature	-55°C ~ 125°C	Number of Lines	2
Mounting Type	Through Hole	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Inductance @ Frequency	5.6mH @ 1kHz
Height (Max)	0.861" (21.86mm)	Filter Type	-
Features	-	Detailed Description	5.6mH @ 1kHz 2 Line Common Mode Choke Through Hole 880mA DCR 500 mOhm
DC Resistance (DCR) (Max)	500 mOhm	Current Rating (Max)	880mA
Approvals	-
