146315-1

TE Connectivity AMP Connectors

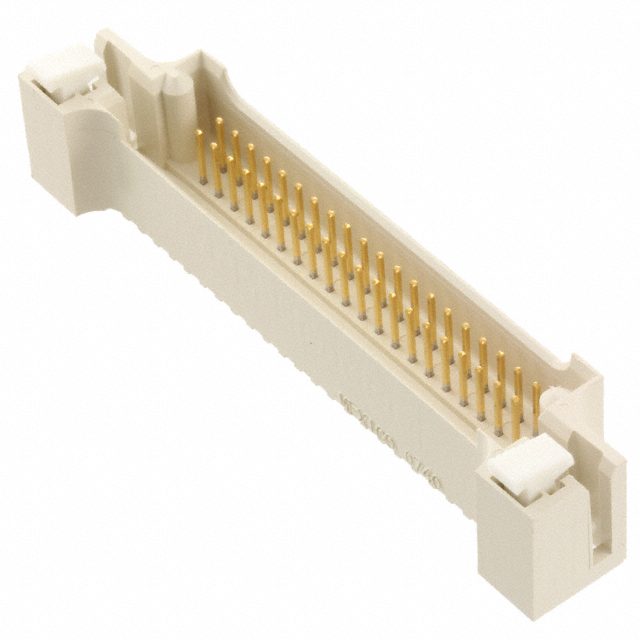

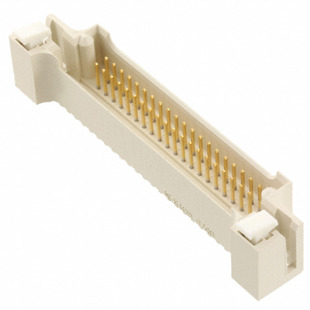

Image may be representation. See specifications for product details.

Product Overview

Part Number:	146315-1
Manufacturer/Brand:	AMP Connectors / TE Connectivity
Product description	CONN HEADER VERT 40POS .100 30AU
Datasheets:	146315-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	37421 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37421 pcs

Reference Price (In US Dollars)

1 pcs: $1.861

10 pcs: $1.785

50 pcs: $1.562

100 pcs: $1.487

250 pcs: $1.301

500 pcs: $1.264

1000 pcs: $1.078

2500 pcs: $1.004

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.861

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 146315-1

Part Number	146315-1	Manufacturer	TE Connectivity AMP Connectors
Description	CONN HEADER VERT 40POS .100 30AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	37421 pcs	Data sheet	146315-1.pdf
Termination	Solder	Series	AMPMODU Mod II
RoHS Status	Bulk	Other Names	146315-1-ND A112213
Number of Rows	2	Number of Positions	40
Number of Conductors	0.100" (2.54mm)	Mounting Type	Through Hole
Molding Height Above Board	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material - Insulation	All	Manufacturer Standard Lead Time	12 Weeks
Manufacturer Part Number	146315-1	Features	Ejector Latches
Expanded Description	40 Position Header BTB Connector Gold 0.100" (2.54mm) Through Hole	Description	CONN HEADER VERT 40POS .100 30AU
Contact Mating Length	0.550" (13.97mm)	Contact Finish Thickness	Gold
Connector Type	Shrouded	Color	White
Cable Pitch	-	Cable Diameter	30µin (0.76µm)
Adapter Type	0.100" (2.54mm)
