TIP142TTU

AMI Semiconductor / ON Semiconductor

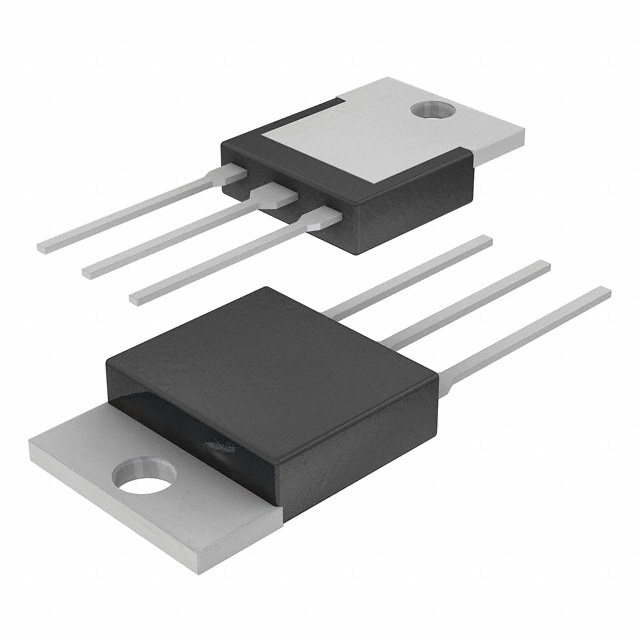

Image may be representation. See specifications for product details.

Product Overview

Part Number:	TIP142TTU
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	TRANS NPN DARL 100V 10A TO220-3
Datasheets:	1.TIP142TTU.pdf 2.TIP142TTU.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	86180 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 86180 pcs

Reference Price (In US Dollars)

1 pcs: $0.572

10 pcs: $0.513

100 pcs: $0.40

500 pcs: $0.33

1000 pcs: $0.261

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.572

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of TIP142TTU

Part Number	TIP142TTU	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	TRANS NPN DARL 100V 10A TO220-3	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	86180 pcs	Data sheet	1.TIP142TTU.pdf 2.TIP142TTU.pdf
Voltage - Collector Emitter Breakdown (Max)	100V	Vce Saturation (Max) @ Ib, Ic	3V @ 40mA, 10A
Transistor Type	NPN - Darlington	Supplier Device Package	TO-220-3
Series	-	Power - Max	80W
Packaging	Tube	Package / Case	TO-220-3
Operating Temperature	150°C (TJ)	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	12 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Frequency - Transition	-
Detailed Description	Bipolar (BJT) Transistor NPN - Darlington 100V 10A 80W Through Hole TO-220-3	DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 5A, 4V
Current - Collector Cutoff (Max)	2mA	Current - Collector (Ic) (Max)	10A
Base Part Number	TIP142
