NCP5106AMNTWG

AMI Semiconductor / ON Semiconductor

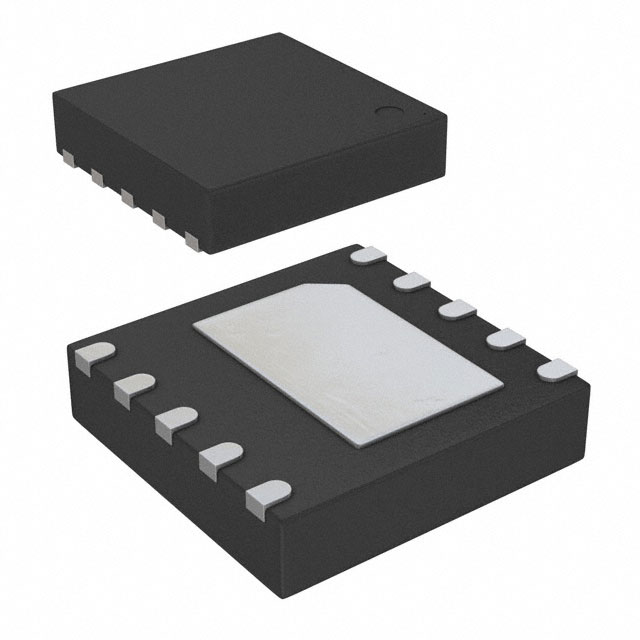

Image may be representation. See specifications for product details.

Product Overview

Part Number:	NCP5106AMNTWG
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	IC DRIVER HI/LO 600V 10DFN
Datasheets:	NCP5106AMNTWG.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	106425 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 106425 pcs

Reference Price (In US Dollars)

1 pcs: $0.416

10 pcs: $0.371

100 pcs: $0.289

500 pcs: $0.239

1000 pcs: $0.189

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.416

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of NCP5106AMNTWG

Part Number	NCP5106AMNTWG	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	IC DRIVER HI/LO 600V 10DFN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	106425 pcs	Data sheet	NCP5106AMNTWG.pdf
Voltage - Supply	10 V ~ 20 V	Supplier Device Package	10-DFN (4x4)
Series	-	Rise / Fall Time (Typ)	85ns, 35ns
Packaging	Original-Reel®	Package / Case	10-VDFN Exposed Pad
Other Names	NCP5106AMNTWGOSDKR	Operating Temperature	-40°C ~ 125°C (TJ)
Number of Drivers	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	4 Weeks
Logic Voltage - VIL, VIH	0.8V, 2.3V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	Non-Inverting	High Side Voltage - Max (Bootstrap)	600V
Gate Type	IGBT, N-Channel MOSFET	Driven Configuration	Half-Bridge
Detailed Description	Half-Bridge Gate Driver IC Non-Inverting 10-DFN (4x4)	Current - Peak Output (Source, Sink)	250mA, 500mA
Channel Type	Independent
