FDZ7296

AMI Semiconductor / ON Semiconductor

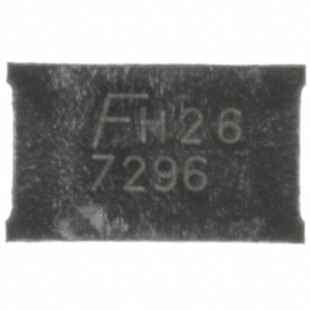

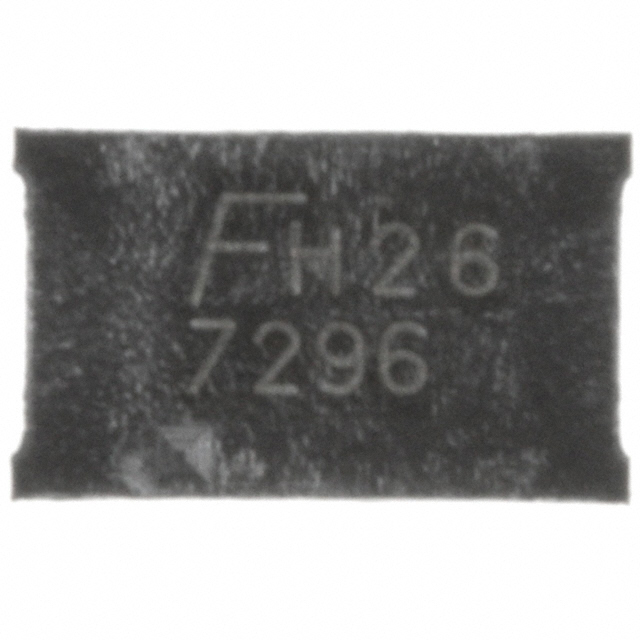

Image may be representation. See specifications for product details.

Product Overview

Part Number:	FDZ7296
Manufacturer/Brand:	AMI Semiconductor / ON Semiconductor
Product description	MOSFET N-CH 30V 11A BGA
Datasheets:	FDZ7296.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5562 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5562 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of FDZ7296

Part Number	FDZ7296	Manufacturer	AMI Semiconductor / ON Semiconductor
Description	MOSFET N-CH 30V 11A BGA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5562 pcs	Data sheet	FDZ7296.pdf
Vgs(th) (Max) @ Id	3V @ 250µA	Vgs (Max)	±20V
Technology	MOSFET (Metal Oxide)	Supplier Device Package	18-BGA (2.5x4)
Series	PowerTrench®	Rds On (Max) @ Id, Vgs	8.5 mOhm @ 11A, 10V
Power Dissipation (Max)	2.1W (Ta)	Packaging	Tape & Reel (TR)
Package / Case	18-WFBGA	Other Names	FDZ7296-ND FDZ7296TR
Operating Temperature	-55°C ~ 150°C (TJ)	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Capacitance (Ciss) (Max) @ Vds	1520pF @ 15V	Gate Charge (Qg) (Max) @ Vgs	31nC @ 10V
FET Type	N-Channel	FET Feature	-
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V	Drain to Source Voltage (Vdss)	30V
Detailed Description	N-Channel 30V 11A (Ta) 2.1W (Ta) Surface Mount 18-BGA (2.5x4)	Current - Continuous Drain (Id) @ 25°C	11A (Ta)
