AMI Semiconductor / ON Semiconductor

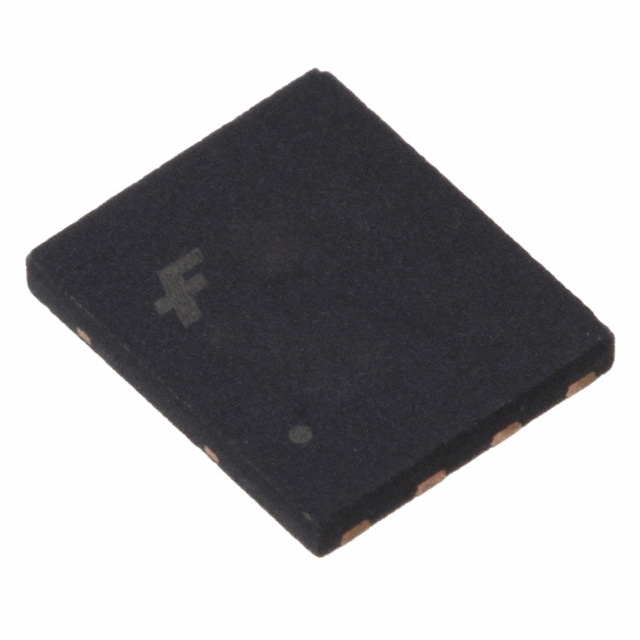

| Part Number | FDMS2672 | Manufacturer | AMI Semiconductor / ON Semiconductor |
|---|---|---|---|
| Description | MOSFET N-CH 200V 3.7A POWER56 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 85376 pcs | Data sheet | FDMS2672.pdf |
| Vgs(th) (Max) @ Id | 4V @ 250µA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 8-MLP (5x6), Power56 |
| Series | UltraFET™ | Rds On (Max) @ Id, Vgs | 77 mOhm @ 3.7A, 10V |
| Power Dissipation (Max) | 2.5W (Ta), 78W (Tc) | Packaging | Cut Tape (CT) |
| Package / Case | 8-PowerWDFN | Other Names | FDMS2672CT |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Input Capacitance (Ciss) (Max) @ Vds | 2315pF @ 100V |
| Gate Charge (Qg) (Max) @ Vgs | 42nC @ 10V | FET Type | N-Channel |
| FET Feature | - | Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Drain to Source Voltage (Vdss) | 200V | Detailed Description | N-Channel 200V 3.7A (Ta), 20A (Tc) 2.5W (Ta), 78W (Tc) Surface Mount 8-MLP (5x6), Power56 |
| Current - Continuous Drain (Id) @ 25°C | 3.7A (Ta), 20A (Tc) |
