ADUM4121-1ARIZ-RL

ADI (Analog Devices, Inc.)

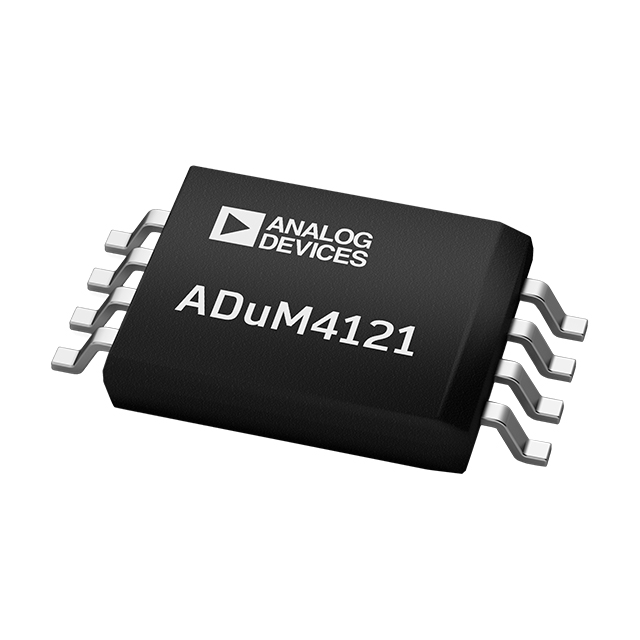

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADUM4121-1ARIZ-RL
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	DGTL ISO 5KV 1CH GATE DRVR 8SOIC
Datasheets:	ADUM4121-1ARIZ-RL.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31227 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 31227 pcs

Reference Price (In US Dollars)

1500 pcs: $1.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.104

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADUM4121-1ARIZ-RL

Part Number	ADUM4121-1ARIZ-RL	Manufacturer	ADI (Analog Devices, Inc.)
Description	DGTL ISO 5KV 1CH GATE DRVR 8SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31227 pcs	Data sheet	ADUM4121-1ARIZ-RL.pdf
Voltage - Supply	4.5 V ~ 35 V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	-	Technology	Magnetic Coupling
Supplier Device Package	8-SOIC	Series	iCoupler®
Rise / Fall Time (Typ)	18ns, 18ns	Pulse Width Distortion (Max)	13ns
Propagation Delay tpLH / tpHL (Max)	42ns, 53ns	Packaging	Tape & Reel (TR)
Package / Case	8-SOIC (0.295", 7.50mm Width)	Operating Temperature	-40°C ~ 125°C
Number of Channels	1	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	3 (168 Hours)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Detailed Description	2.3A Gate Driver Magnetic Coupling 5000Vrms 1 Channel 8-SOIC
Current - Peak Output	2.3A	Current - Output High, Low	-
Common Mode Transient Immunity (Min)	150kV/µs	Base Part Number	ADUM4121
Approvals	CSA, UR, VDE
