ADG836YRMZ-REEL7

ADI (Analog Devices, Inc.)

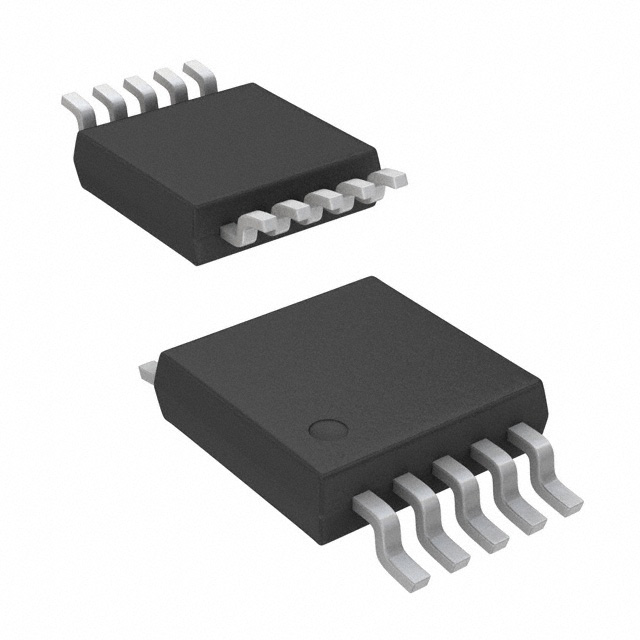

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ADG836YRMZ-REEL7
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC SWITCH DUAL SPDT 10MSOP
Datasheets:	ADG836YRMZ-REEL7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	38848 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 38848 pcs

Reference Price (In US Dollars)

1 pcs: $1.289

10 pcs: $1.157

100 pcs: $0.948

500 pcs: $0.807

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.289

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ADG836YRMZ-REEL7

Part Number	ADG836YRMZ-REEL7	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC SWITCH DUAL SPDT 10MSOP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	38848 pcs	Data sheet	ADG836YRMZ-REEL7.pdf
Voltage - Supply, Single (V+)	1.65 V ~ 3.6 V	Voltage - Supply, Dual (V±)	-
Switch Time (Ton, Toff) (Max)	26ns, 7ns	Switch Circuit	SPDT
Supplier Device Package	10-MSOP	Series	-
Packaging	Cut Tape (CT)	Package / Case	10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Other Names	ADG836YRMZ-REEL7CT	Operating Temperature	-40°C ~ 125°C (TA)
On-State Resistance (Max)	650 mOhm	Number of Circuits	2
Multiplexer/Demultiplexer Circuit	2:1	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	2 Circuit IC Switch 2:1 650 mOhm 10-MSOP	Current - Leakage (IS(off)) (Max)	200pA (Typ)
Crosstalk	-90dB @ 100kHz	Charge Injection	40pC
Channel-to-Channel Matching (ΔRon)	40 mOhm	Channel Capacitance (CS(off), CD(off))	25pF
Base Part Number	ADG836	-3db Bandwidth	57MHz
