AD569SD

ADI (Analog Devices, Inc.)

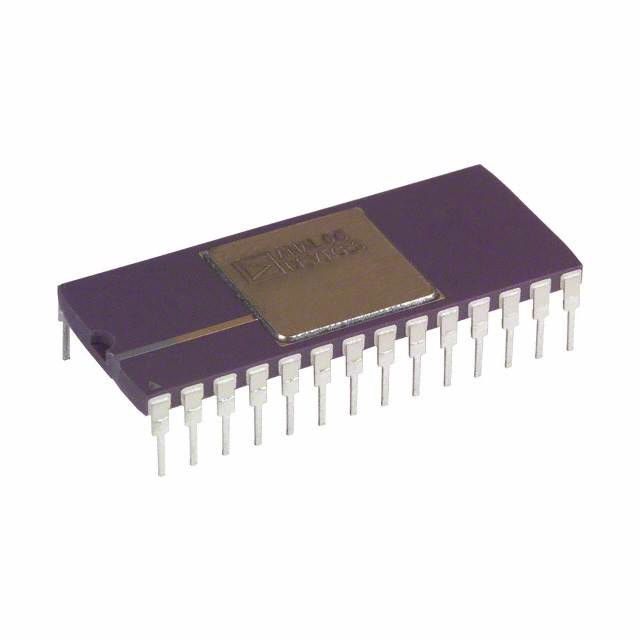

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AD569SD
Manufacturer/Brand:	ADI (Analog Devices, Inc.)
Product description	IC DAC 16BIT MONO NON-LIN 28CDIP
Datasheets:	AD569SD.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	4520 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 4520 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AD569SD

Part Number	AD569SD	Manufacturer	ADI (Analog Devices, Inc.)
Description	IC DAC 16BIT MONO NON-LIN 28CDIP	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	4520 pcs	Data sheet	AD569SD.pdf
Voltage - Supply, Digital	-	Voltage - Supply, Analog	±10.8 V ~ 13.2 V
Supplier Device Package	28-CDIP	Settling Time	6µs
Series	-	Reference Type	External
Packaging	Tube	Package / Case	28-CDIP (0.600", 15.24mm)
Output Type	Voltage - Buffered	Operating Temperature	-55°C ~ 125°C
Number of D/A Converters	1	Number of Bits	16
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	INL/DNL (LSB)	-, ±1 (Max)
Differential Output	No	Detailed Description	16 Bit Digital to Analog Converter 1 28-CDIP
Data Interface	Parallel	Base Part Number	AD569
Architecture	Segmented DAC
