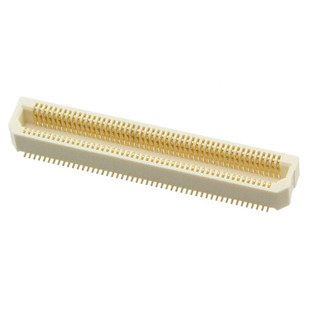

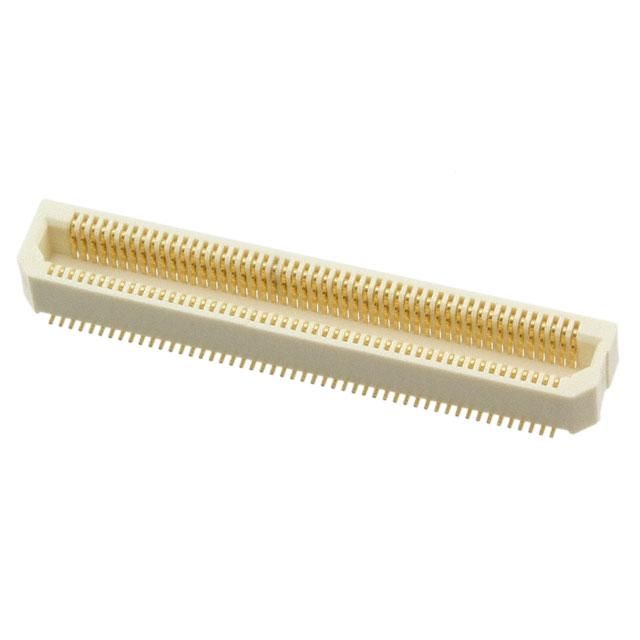

P05N-100ST-B-G

Image may be representation. See specifications for product details.

Product Overview

Part Number:	P05N-100ST-B-G
Manufacturer/Brand:	3M
Product description	CONN SOCKT 100POS .5MM VERT SMD
Datasheets:	P05N-100ST-B-G.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	23304 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23304 pcs

Reference Price (In US Dollars)

1500 pcs: $1.67

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.67

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of P05N-100ST-B-G

Part Number	P05N-100ST-B-G	Manufacturer	3M
Description	CONN SOCKT 100POS .5MM VERT SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	23304 pcs	Data sheet	P05N-100ST-B-G.pdf
Series	P05N	Pitch	0.020" (0.50mm)
Packaging	Tape & Reel (TR)	Other Names	0-00-48011-46314-8 15020146302 3M9672TR 4801146314 48011463148 P05N100STBG
Number of Rows	2	Number of Positions	100
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mated Stacking Heights	4mm, 5mm, 6mm	Manufacturer Standard Lead Time	11 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.120" (3.05mm)
Features	Solder Retention	Detailed Description	100 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Contact Finish Thickness	8.00µin (0.203µm)	Contact Finish	Gold
Connector Type	Socket, Outer Shroud Contacts
