3M

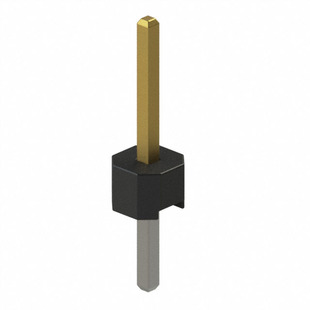

| Part Number | 951101-8622-AR | Manufacturer | 3M |
|---|---|---|---|
| Description | CONN HEADER 1POS 2MM VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 252599 pcs | Data sheet | 1.951101-8622-AR.pdf2.951101-8622-AR.pdf3.951101-8622-AR.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board | Shrouding | Unshrouded |
| Series | 951 | Row Spacing - Mating | - |
| Pitch - Mating | - | Packaging | Bulk |
| Overall Contact Length | 0.343" (8.70mm) | Other Names | 3M156413-01 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.060" (1.52mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Through Hole 1 position |
| Current Rating | 1A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | 0.173" (4.40mm) |
| Contact Finish Thickness - Post | 39.4µin (1.00µm) | Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
