3M

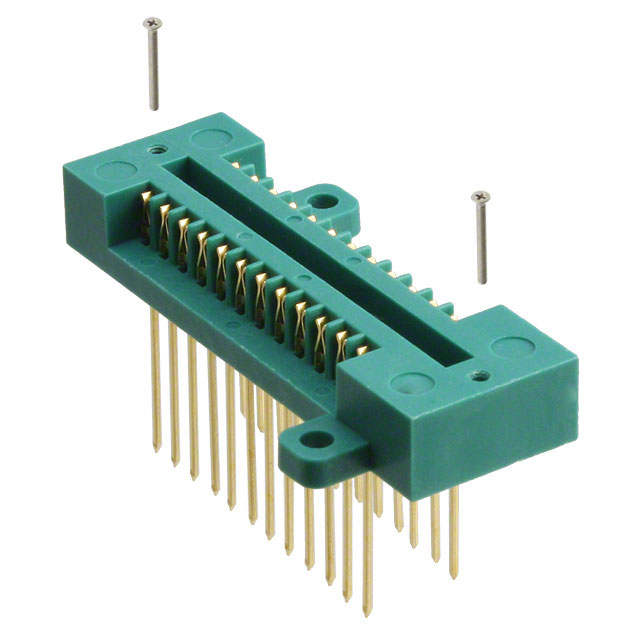

| Part Number | 224-5248-19-0602J | Manufacturer | 3M |
|---|---|---|---|
| Description | RECEPTACLE DIP SOCKET 24POS .3" | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4059 pcs | Data sheet | 224-5248-19-0602J.pdf |
| Termination | Solder | Series | Textool™ |
| Pitch - Post | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Other Names | 0 51138 69608 5 2245248190602J 3M5022 5113869608 51138696085 7100116335 JE150900338 |
Operating Temperature | -55°C ~ 125°C |
| Number of Pins | 24 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Polysulfone (PSU), Glass Filled | Features | - |
| Detailed Description | IC Socket Adapter DIP, 0.3" (7.62mm) Row Spacing To DIP, 0.3" (7.62mm) Row Spacing Through Hole | Current Rating | 1A |
| Convert To (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing | Convert From (Adapter End) | DIP, 0.3" (7.62mm) Row Spacing |
| Contact Material - Post | Beryllium Copper | Contact Material - Mating | Beryllium Copper |
| Contact Finish Thickness - Post | 30.0µin (0.76µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Board Material | - |
