PC12311YFZ0X

Sharp Microelectronics

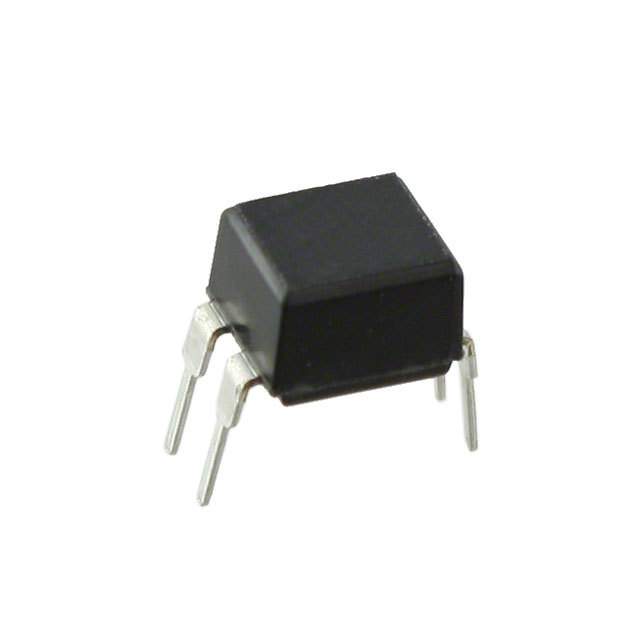

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PC12311YFZ0X
Manufacturer/Brand:	Sharp Microelectronics
Product description	OPTOISOLATOR 5KV TRANSISTOR 4DIP
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5508 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 5508 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PC12311YFZ0X

Part Number	PC12311YFZ0X	Manufacturer	Sharp Microelectronics
Description	OPTOISOLATOR 5KV TRANSISTOR 4DIP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5508 pcs	Data sheet
Voltage - Output (Max)	70V	Voltage - Isolation	5000Vrms
Voltage - Forward (Vf) (Typ)	1.2V	Vce Saturation (Max)	200mV
Turn On / Turn Off Time (Typ)	-	Supplier Device Package	4-DIP
Series	-	Rise / Fall Time (Typ)	4µs, 3µs
Packaging	Tube	Package / Case	4-DIP (0.300", 7.62mm)
Output Type	Transistor	Operating Temperature	-30°C ~ 100°C
Number of Channels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Input Type	DC	Detailed Description	Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Current Transfer Ratio (Min)	100% @ 500µA	Current Transfer Ratio (Max)	250% @ 500µA
Current - Output / Channel	50mA	Current - DC Forward (If) (Max)	10mA
