STB9NK70Z-1

STMicroelectronicsSTMicroelectronics

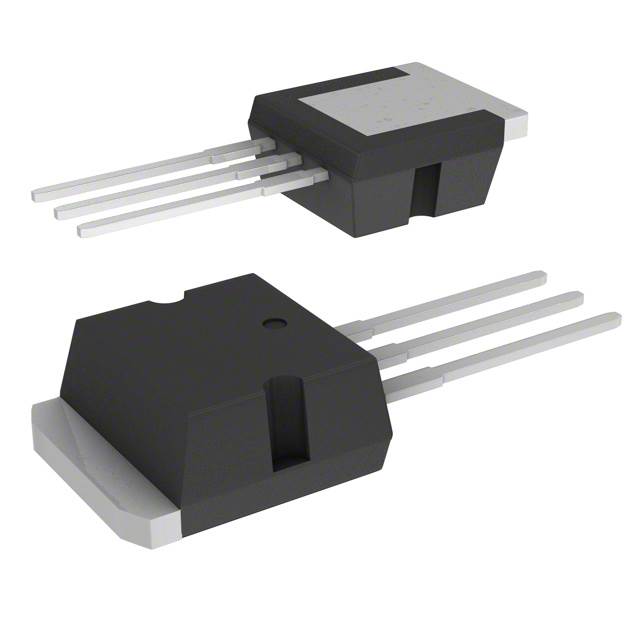

STB9NK70Z-1 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: STB9NK70Z-1
Manufacturer/Brand: STMicroelectronics
Product description MOSFET N-CH 700V 7.5A I2PAK
Datasheets: STB9NK70Z-1.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 5702 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 5702 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of STB9NK70Z-1

Part Number STB9NK70Z-1 Manufacturer STMicroelectronics
Description MOSFET N-CH 700V 7.5A I2PAK Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 5702 pcs Data sheet STB9NK70Z-1.pdf
Vgs(th) (Max) @ Id 4.5V @ 100µA Vgs (Max) ±30V
Technology MOSFET (Metal Oxide) Supplier Device Package I2PAK
Series SuperMESH™ Rds On (Max) @ Id, Vgs 1.2 Ohm @ 4A, 10V
Power Dissipation (Max) 115W (Tc) Packaging Tube
Package / Case TO-262-3 Long Leads, I²Pak, TO-262AA Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Input Capacitance (Ciss) (Max) @ Vds 1370pF @ 25V
Gate Charge (Qg) (Max) @ Vgs 68nC @ 10V FET Type N-Channel
FET Feature - Drive Voltage (Max Rds On, Min Rds On) 10V
Drain to Source Voltage (Vdss) 700V Detailed Description N-Channel 700V 7.5A (Tc) 115W (Tc) Through Hole I2PAK
Current - Continuous Drain (Id) @ 25°C 7.5A (Tc)
